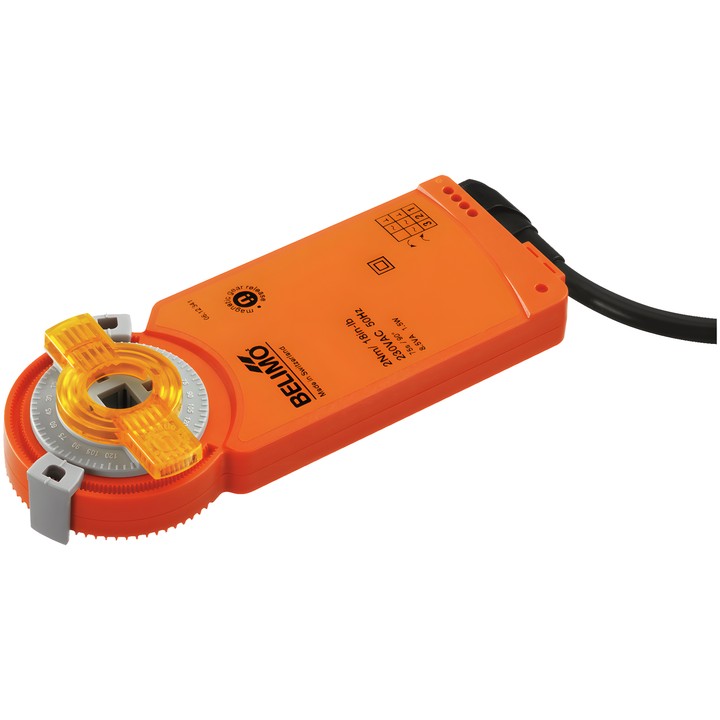

Belimo CM230G-F-L - damper actuator

Name: Belimo CM230G-F-L - damper actuator
Brand: Belimo
SKU: CM230G-F-L
Price: 840.09 PLN
Availability: OutOfStock

Belimo

zł840.09

VAT included

zł683.00 tax excluded

Damper actuator with 2 Nm torque, AC 100...240 V supply and 3-point Close/Open control. Motor running time is 75 s / 90°, and the mechanical connection is a form-fit connection, 8x8 mm.

IEC/EN IP66 protection requires mounting the rear side tightly against the damper housing. With installation rotated by 180°, only IP54 is guaranteed.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CM230G-F-L – damper actuator

Actuator designed to control air dampers in technical building systems. The technical data sheet specifies a damper size of up to approx. 0.4 m².

Key technical data

Motor torque: 2 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Close/Open, 3-point.
Motor running time: 75 s / 90°; direction of movement: counterclockwise (ccw).
Rotation angle: 0...287.5°; angle adjustment using mechanical end stops.
Mechanical connection: form-fit connection, 8x8 mm.
Power and control connection: 1 m cable, 3x 0.75 mm².
Power consumption during operation: 1.5 W; at rest: 1 W; power for cable sizing: 3 VA.
Manual override: using a magnet; mechanical position indicator.
IEC/EN protection rating: IP66; IEC/EN protection class: II, reinforced insulation.
Ambient temperature: -30...50°C [-22...122°F].

Installation note

To maintain IP66, the actuator must be mounted with its rear side tightly against the damper housing. When installed rotated by 180°, with its front side against the damper housing, only IP54 protection is guaranteed.
