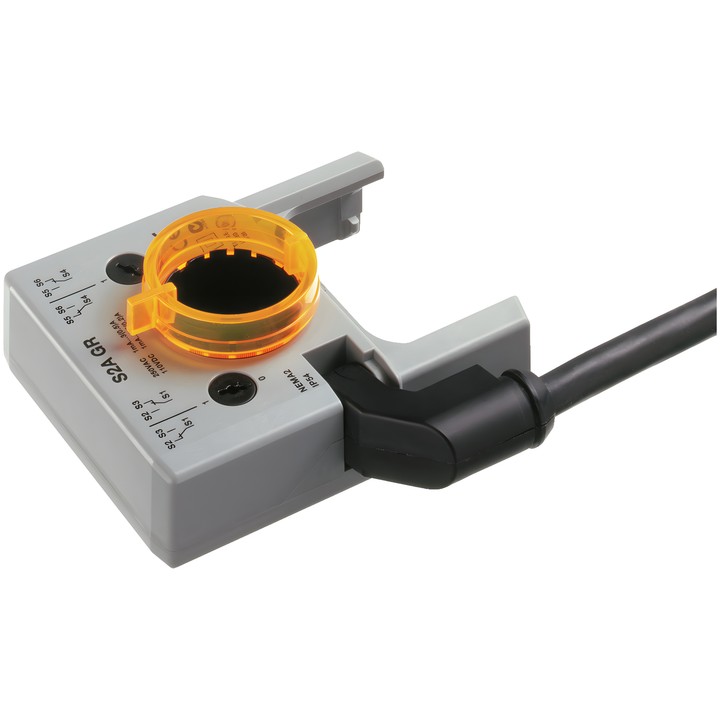

Belimo S2A/300 GR - plug-on auxiliary switch

Name: Belimo S2A/300 GR - plug-on auxiliary switch
Brand: Belimo
SKU: S2A/300 GR
Price: 715.86 PLN
Availability: OutOfStock

Belimo

zł715.86

VAT included

zł582.00 tax excluded

Belimo S2A/300 GR is a grey, plug-on auxiliary switch with 2x SPDT for damper actuators and rotary actuators. Switching points can be adjusted within 0...100% of the actuator rotation.

The product has a 3 m cable, 6 x 0.75 mm², FRNC (halogen-free), and an IP54 protection rating.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo S2A/300 GR auxiliary switch

A plug-on auxiliary switch for position indication or switching functions at a selected actuator angle setting. Designed for damper actuators and rotary actuators. Switching points are set using the dial; the current switch position can be read.

Key features and specifications

Auxiliary contacts: 2x SPDT.
Switching points: adjustable within 0...100% of the actuator rotation.
Contact rating: 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V / 1 mA...0.5 A (0.2 A inductive; L/R = 3.4 ms), DC 5 V...DC 110 V.
Connection: 3 m cable, 6 x 0.75 mm², FRNC (halogen-free).
Protection rating: IP54; NEMA 2. Enclosure type: UL Enclosure Type 2.
Ambient temperature: -30...50°C [-22...122°F].
Cover and enclosure base colour: grey.

The switch is mounted directly at the shaft clamp of the damper actuator or at the position indicator of the rotary actuator. Auxiliary switch settings must only be made with the power supply disconnected.
