Belimo CM24-SX-T-L - modulating damper actuator

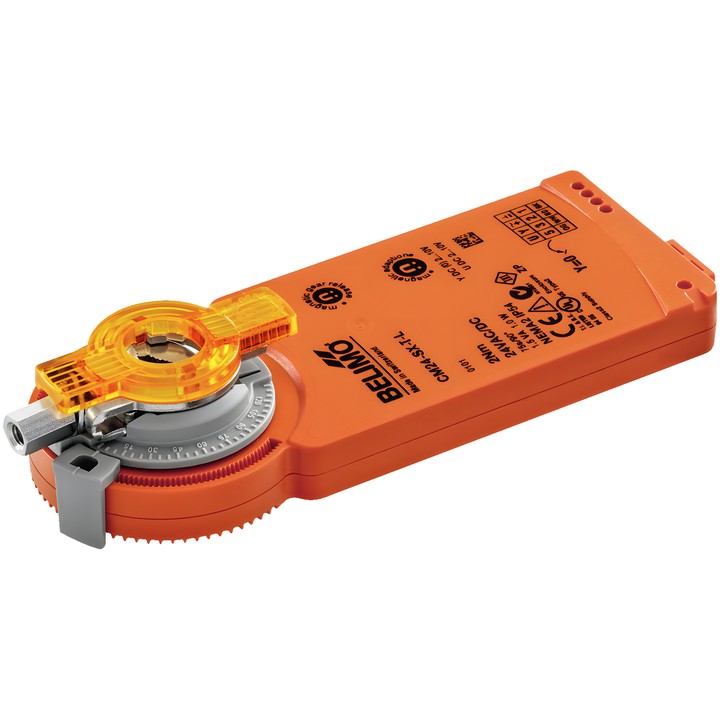

Belimo CM24-SX-T-L – damper actuator

Modulating actuator designed to position dampers in technical building systems. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 0.4 m².

Key features and specifications

• Motor torque: 2 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
• Control: 2...10 V; position feedback signal: 2...10 V.
• Motor running time: 75 s / 90°; direction of movement: counter-clockwise (ccw).
• Angle of rotation: 0...287.5°; adjustment using mechanical end stops.
• Manual override and adaptation initiated using a magnet. On initial power-up, the actuator performs adaptation automatically.
• Universal shaft clamp for 6...12.7 mm and mechanical position indicator.
• Power and control connection: terminals; power consumption during operation: 1 W, at rest: 0.5 W; wire sizing power: 1.5 VA.
• IEC/EN degree of protection: IP20; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F].

The actuator is mounted directly on the damper shaft. The Z-ARCM anti-rotation clip is included with the product. After manual override, adaptation must be initiated using a magnet.
