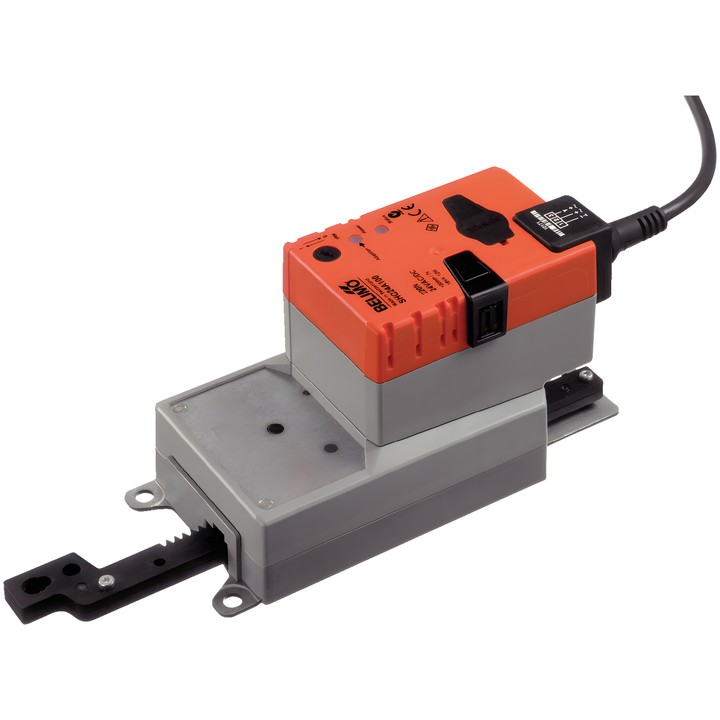

Belimo SHQ24A100 - linear actuator AC/DC 24 V, 200 N

Belimo SHQ24A100 – linear actuator

Actuator for positioning dampers and slide valves in building services systems. Close/Open control is not suitable for 3-point control.

Key features and specifications

• Actuator force: 200 N; air damper size up to approx. 1.3 m².
• Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
• Power consumption during operation: 13 W; at rest: 2 W; wire sizing power: 23 VA.
• Stroke: 100 mm; max. 100 mm, adjustable in 20 mm increments; minimum stroke: 40 mm. Stroke limited on both sides by mechanical stops.
• Motor running time: 7 s / 100 mm.
• Direction of movement selected by switch 0 (extended) / 1 (retracted).
• Manual operation by pushbutton with locking option.
• Power and control connection: 1 m cable, 3x 0.75 mm².
• Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...40°C [-22...104°F].

The actuator is overload-protected and stops automatically when a stop is reached. When first powered on, it adapts its operating range to the mechanically set stroke; adaptation is also required after changing the stroke limitation.
