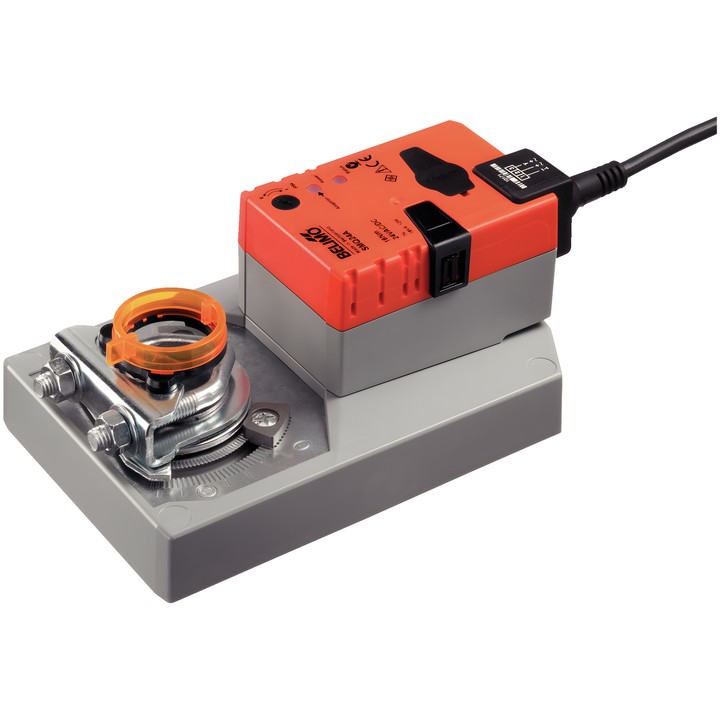

Belimo SMQ24A damper actuator with 16 Nm torque, AC/DC 24 V supply and Close/Open control. Motor running time is 7 s / 90°.

Equipped with a reversible universal clamp 12...26.7 mm, a mechanical rotation angle limiter and manual override by push-button with locking option.

Delivery in approx. 14 days
Share

Belimo SMQ24A damper actuator

The SMQ24A is used to position dampers in building services systems. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 3.2 m². Close/Open control is not suitable for 3-point control.

Key features and specifications

  • Torque: 16 Nm; rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Motor running time: 7 s / 90°; rotation angle: max. 95°, with adjustable mechanical stops on both sides. Minimum permitted rotation angle: 30°.
  • Direction of movement selected by switch 0 (counterclockwise) / 1 (clockwise).
  • Manual override by push-button with locking option; mechanical plug-on position indicator.
  • Reversible universal clamp 12...26.7 mm; connection cable 1 m, 3x 0.75 mm².
  • Power consumption during movement: 15 W; at rest: 2 W; power rating for cable sizing: 26 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...40°C [-22...104°F].

The actuator has overload protection and stops automatically when the end position is reached. Adaptation is required after commissioning and after every change to the rotation angle.

  • Brand
    Belimo
  • Reference
    SMQ24A
  • EAN13
    7630498114618

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    15 W
  • Power consumption (holding)
    2 W
  • Rated power
    26 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Close/Open
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    7 s / 90°
  • Ambient temperature
    -30...40°C [-22...104°F]
  • Torque
    16 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 12...26.7 mm

Techniczna karta katalogowa

Download (1.27MB)

Instrukcja montażu

Download (469.52KB)

EU Declaration of Conformity – SMQ24A

Download (51.12KB)

Environmental Declaration – SMQ..

Download (72.55KB)
