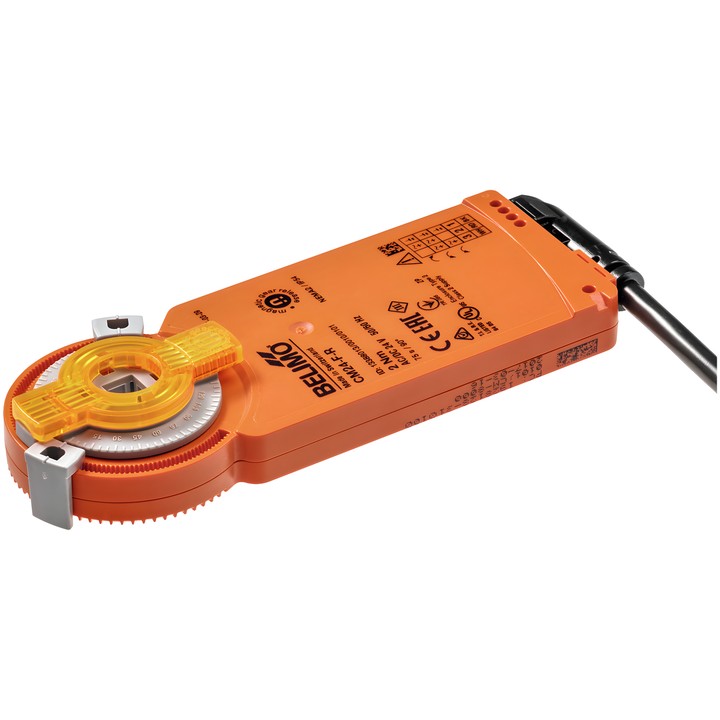

Belimo CM24-F-R - damper actuator

Name: Belimo CM24-F-R - damper actuator
Brand: Belimo
SKU: CM24-F-R
Price: 715.86 PLN
Availability: OutOfStock

Belimo

zł715.86

VAT included

zł582.00 tax excluded

Belimo CM24-F-R damper actuator with a torque of 2 Nm, powered by AC/DC 24 V. Supports Open/Close and 3-point control; running time is 75 s / 90°.

Features an 8x8 mm form-fit connection, manual override using a magnet and a mechanical position indicator. Protection rating: IP54.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CM24-F-R damper actuator

Actuator designed to position air dampers in technical building systems. According to the technical data sheet, it is intended for dampers with an area of up to approx. 0.4 m².

Key features and specifications

Motor torque: 2 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
Open/Close and 3-point control; motor running time: 75 s / 90°.
Motor direction: clockwise rotation (cw); rotation angle: 0...287.5°.
8x8 mm form-fit connection; rotation angle adjustment using mechanical stops.
Manual override using a magnet and a mechanical position indicator.
Power and control connection: Cable 1 m, 3x 0.75 mm².
Power consumption during operation: 0.5 W; at rest: 0.2 W; sizing power: 1 VA.
IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

The actuator is mounted directly on the damper shaft and secured against rotation with the Z-ARCM clip supplied with the product. The device is protected against overload and stops automatically when the stop is reached.
