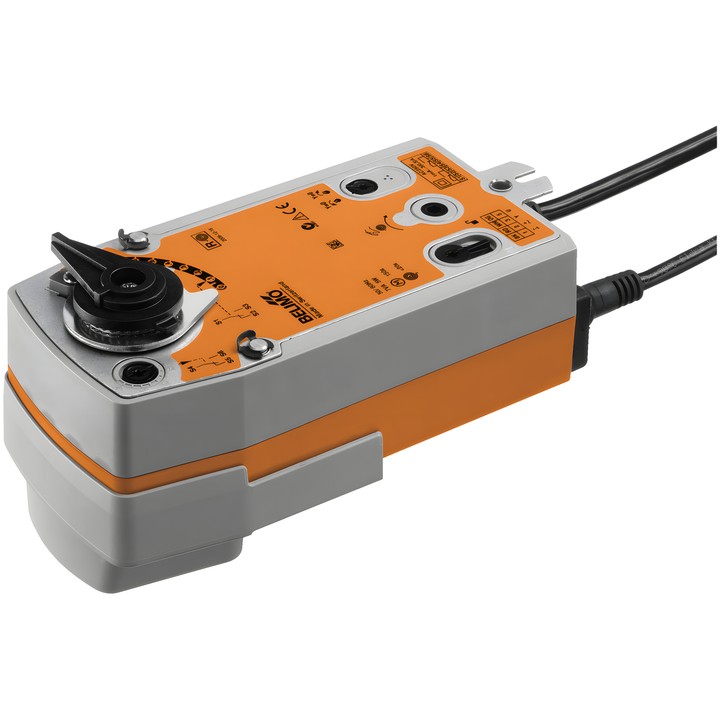

Belimo SRFA-S2-O - rotary actuator for ball valves
Price:
zł1,633.34
VAT included
zł1,327.92 tax excluded
Belimo SRFA-S2-O rotary actuator for ball valves, with fail-safe function and NO position when power is off (valve open). Torque 20 Nm, Open/Close control and rated voltage AC 24...240 V / DC 24...125 V.
Motor running time 75 s / 90°. Equipped with 2x SPDT; IP54 protection rating.
Belimo SRFA-S2-O – actuator for ball valves
Rotary actuator with fail-safe function: during operation, it tensions the return spring; when the power supply fails, the spring moves the valve to the safety position. The position when power is off is NO, valve open (A–AB = 100%). For valves with an L-type port, the manufacturer specifies A–AB = 0%.
Key features
- Motor and fail-safe function torque: 20 Nm.
- Open/Close control; rated voltage AC 24...240 V / DC 24...125 V, frequency 50/60 Hz.
- Motor running time: 75 s / 90°; fail-safe function operating time: <20 s @ -20...50°C, <60 s @ -30°C.
- Two integrated auxiliary switches: 2x SPDT, 1x 10% / 1x 11...100%.
- Power consumption during operation: 7 W; at rest: 3.5 W; sizing power: 18 VA.
- Manual adjustment using a crank with locking switch; adjustable rotation angle with mechanical stops and a mechanical position indicator.
- Power and control connection: cable 1 m, 2x 0.75 mm²; auxiliary switch connection: cable 1 m, 6x 0.75 mm².
- IP54 protection rating; ambient temperature -30...50°C.
-
Brand
-
ReferenceSRFA-S2-O
-
EAN137630498115301
-
AC/DC voltageAC 24...240 V / DC 24...125 V
-
Auxiliary switch connectionCable 1 m, 6x 0.75 mm²
-
Power consumption (running)7 W
-
Power consumption (holding)3.5 W
-
Rated power18 VA
-
Power supply control connectionCable 1 m, 2x 0.75 mm²
-
Control typeClose/Open
-
Protection ratingIP54
-
NEMA protection ratingNEMA 2
-
Enclosure typeUL Enclosure Type 2
-
Auxiliary contacts2x SPDT
