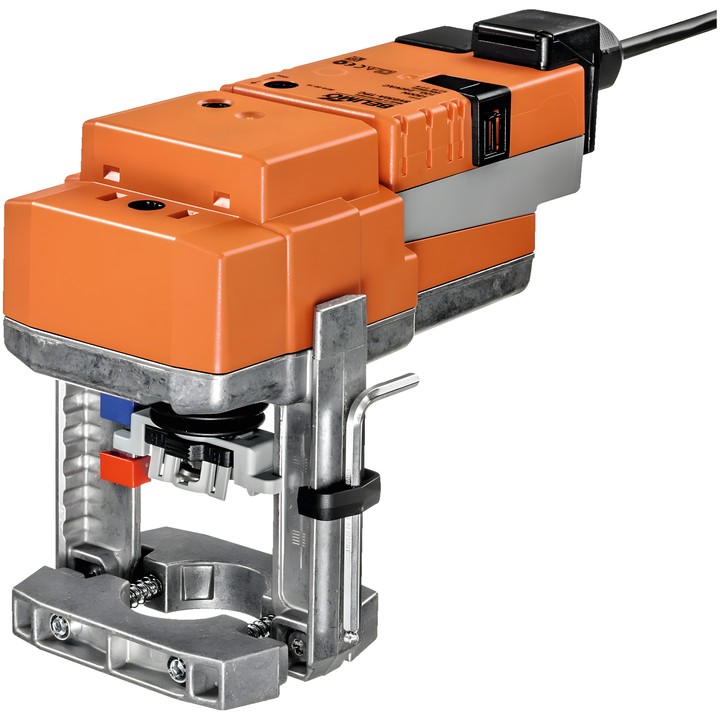

Belimo SV230A-TPC - actuator for globe valves

Belimo SV230A-TPC

Actuator for 2-way and 3-way globe valves. Equipped with manual push-button operation that can be locked and a mechanical position indicator.

Key features and technical data

• Actuator force: 1500 N; stroke: 20 mm.
• Control: Close/Open, 3-point.
• Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
• Running time: 150 s / 20 mm.
• Power consumption during operation: 2 W; at rest: 1 W; power consumption for wire sizing: 4 VA.
• Power and control connection: terminals with 1 m cable, 3x 0.75 mm² (terminal 4 mm²).
• Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.
• Direct mounting on the valve using clamping jaws; actuator can be rotated 360° on the valve neck.
• Overload protection and automatic stop when the end position is reached.
