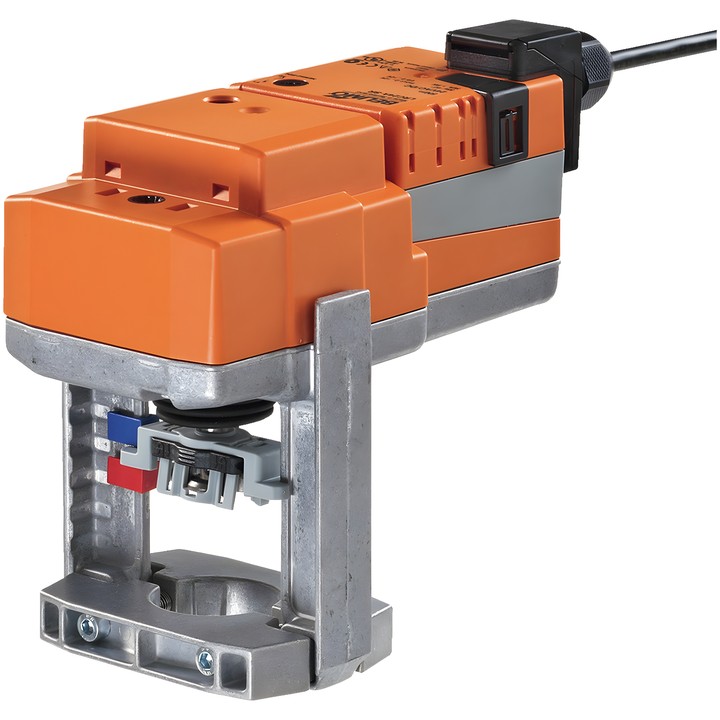

Belimo SV24A-TPC - linear actuator for globe valves

Belimo SV24A-TPC – actuator for globe valves

Linear actuator designed for 2-way and 3-way globe valves. Supports Close/Open and 3-point control. Direct mounting on the valve is carried out using clamping jaws; the actuator can be rotated 360° on the valve neck.

Key features and specifications

• Actuator force: 1500 N; stroke: 20 mm; running time: 150 s / 20 mm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Rated voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
• Power consumption during operation: 2.5 W; in the resting position: 0.5 W; sizing power: 5 VA.
• Power and control connection: terminals with 1 m cable, 3x 0.75 mm² (terminal 4 mm²).
• Manual adjustment using a push-button with locking option; mechanical position indicator for a stroke of 5...20 mm.
• Overload protection and automatic stop when the end position is reached.
• Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
