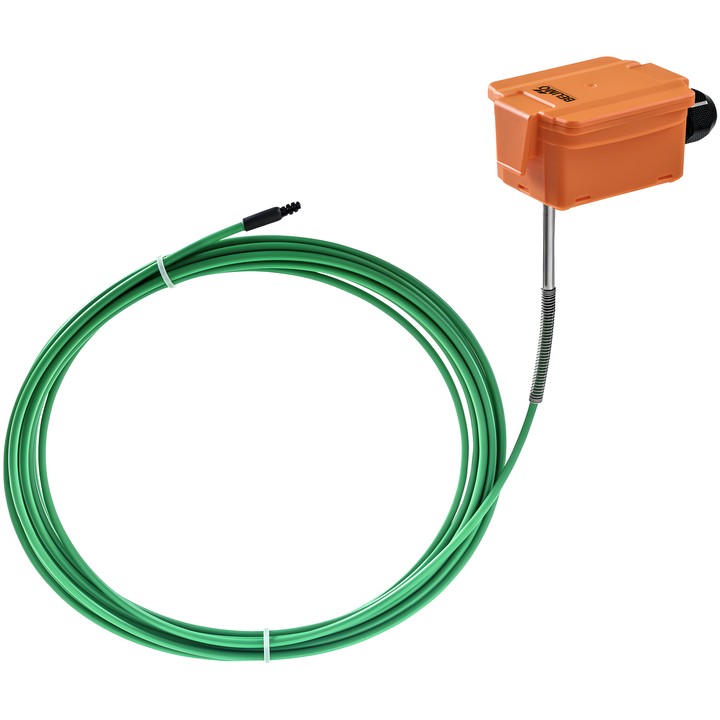

Belimo 01MT-1B8 - passive average temperature sensor

Belimo 01MT-1B8 - passive average temperature sensor

Belimo
zł2,354.22
VAT included
zł1,914.00 tax excluded

Belimo 01MT-1B8 passive average temperature sensor for measuring air temperature. Pt1000 output signal and 15 m probe length.

The sensing element is continuous along the entire probe length. Enclosure protection rating: IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 01MT-1B8 – average temperature sensor

Passive sensor for measuring air temperature in stationary heating, ventilation and air conditioning systems. The Pt1000 version uses one continuous sensing element along the entire probe length.

Key features

  • Output signal: Pt1000.
  • Probe length: 15 m.
  • Measuring range: -35...70°C [-30...160°F].
  • Temperature accuracy: Class B, ±0.3°C @ 0°C [±0.5°F @ 32° F].
  • Measuring current: <0.3 mA @ 0°C [32°F].
  • Electrical connection: plug-in terminal block with spring-clamp wire fixing, max. 2.5 mm².
  • Cable entry: cable gland with strain relief ø6...8 mm.
  • Protection rating: IP65 according to IEC/EN and NEMA 4X according to NEMA/UL.

The package includes a mounting kit with 6 A-22D-A08 brackets and an S A-22D-A09 enclosure mounting plate.

  • Brand
    Belimo
  • Reference
    01MT-1B8
  • EAN13
    7630498144783

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    Pt1000
  • Passive temperature sensor output
    Pt1000
  • Probe length
    15 m

Techniczna karta katalogowa

Download (1.41MB)

Instrukcja montażu

Download (1.12MB)

Techniczna karta katalogowa – 01MT-1..

Download (1.41MB)

Environmental Declaration – ..MT..

Download (69.98KB)
