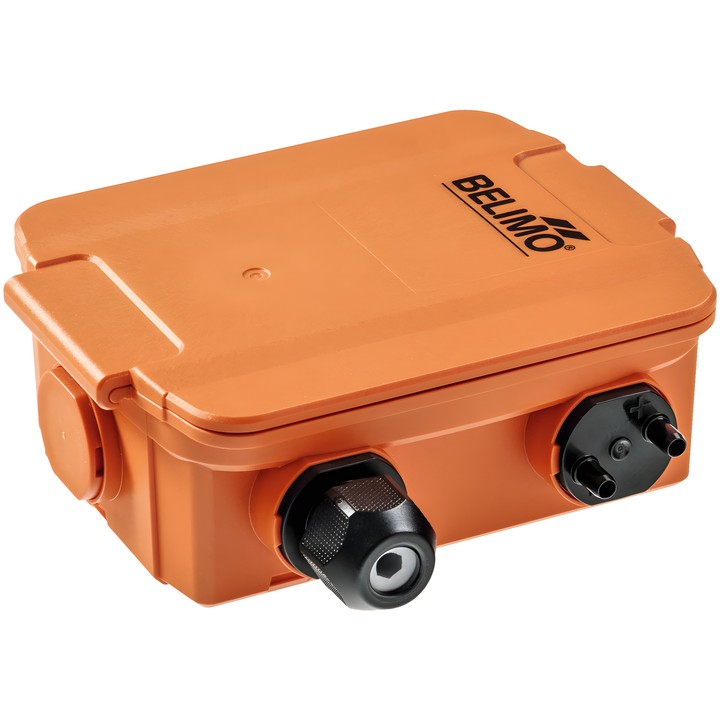

Belimo 22ADP-156 – air differential pressure sensor

Transmitter for monitoring positive pressure, negative pressure or differential pressure of air and other non-flammable, non-aggressive gases. Typical HVAC applications include monitoring air filters, fans, V-belts, and fire and smoke dampers.

Key features

  • Pressure measuring range: 0...7000 Pa (0...28 inch WC); 8 selectable measuring ranges.
  • Measured values: differential pressure and volumetric flow.
  • Communication: Modbus RTU; analogue outputs: 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ. 0...5/10 V output signal selectable by switch.
  • Nominal voltage: AC/DC 24 V.
  • Electrical connection: pluggable terminal block with spring terminals, max. 2.5 mm².
  • Protection rating: IP65 / NEMA 4X.
  • Included: mounting plate, mounting kit, 2 plastic duct connectors and 2 m PVC tube.

  • Brand
    Belimo
  • Reference
    22ADP-156
  • EAN13
    7630498100857

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure Volume flow
  • Output signal
    Modbus 0...5 V 0...10 V
  • Pressure measuring range
    0...7000 Pa | 0...28 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU
