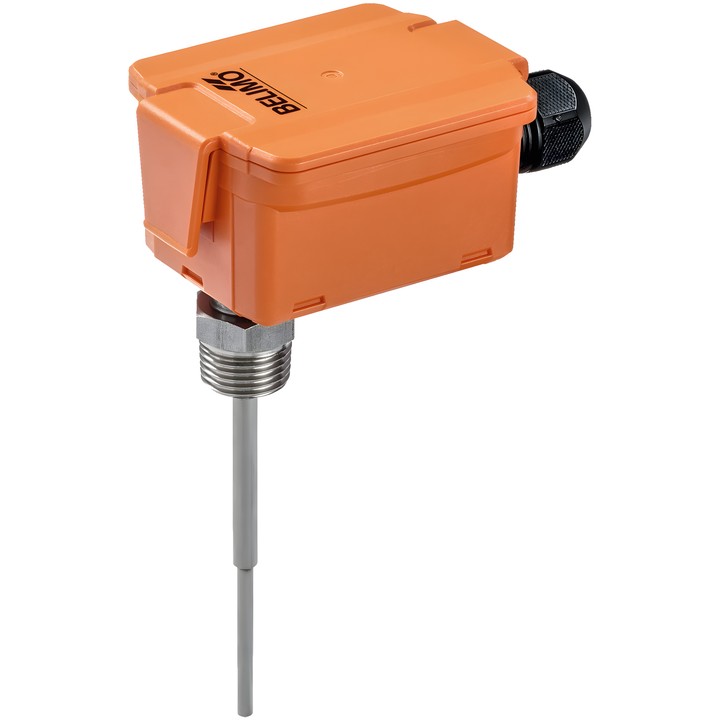

Belimo 01PT-1BL - immersion temperature sensor Pt1000

Belimo 01PT-1BL - immersion temperature sensor Pt1000

Belimo
zł238.36
VAT included
zł193.79 tax excluded

Passive Belimo 01PT-1BL immersion temperature sensor for measuring liquid temperature. Equipped with a 100 mm long, 6/4 mm diameter stainless steel probe and an R 1/2" connection.

Pt1000 output signal, fast response characteristic and IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days
Share

Belimo 01PT-1BL – immersion temperature sensor

Passive sensor for measuring liquid temperature, with a stainless steel probe designed for direct immersion.

Key features

  • Output signal: Pt1000.
  • Probe length: 100 mm; probe diameter: 6/4 mm.
  • Probe connection: R 1/2"; nominal pressure: PN10.
  • Measuring range for Pt..: -50...160°C [-60...320°F].
  • Accuracy for Pt..: class B, ±0.3°C @ 0°C [±0.5°F @ 32°F].
  • Typical time constant τ (63%) in a water pipe: 2.5 s.
  • Electrical connection: plug-in spring-clamp terminal block, max. 2.5 mm².
  • Protection rating: IP65 / NEMA 4X.

  • Brand
    Belimo
  • Reference
    01PT-1BL
  • EAN13
    7630498117633

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    Pt1000
  • Passive temperature sensor output
    Pt1000
  • Probe length
    100 mm

Techniczna karta katalogowa

Download (1.29MB)

Instrukcja montażu

Download (1.52MB)

Techniczna karta katalogowa – 01PT-1..

Download (1.29MB)

EU Declaration of Conformity – 01PT-1BL

Download (37.83KB)

Environmental Declaration – 01PT..

Download (70.16KB)
