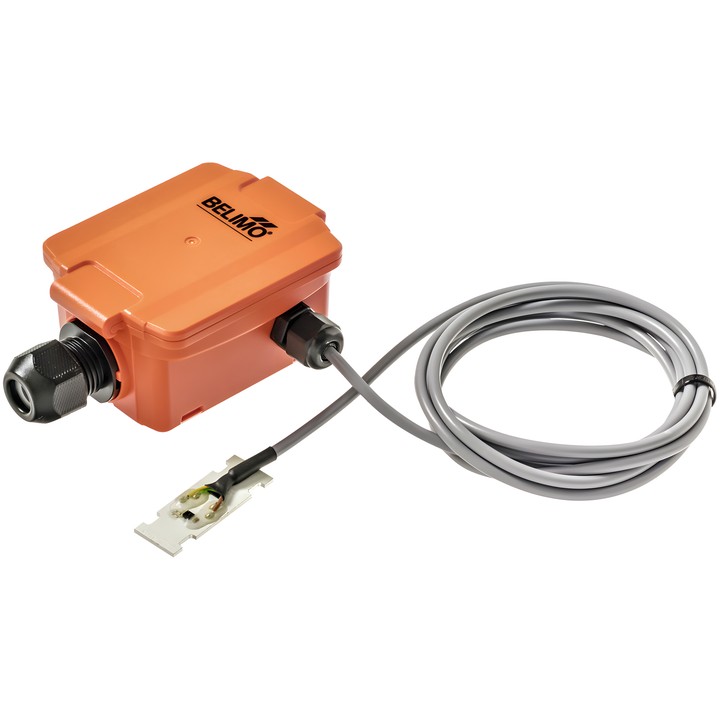

Belimo 22HTH-110X - contact humidity and temperature sensor

Name: Belimo 22HTH-110X - contact humidity and temperature sensor
Brand: Belimo
SKU: 22HTH-110X
Price: 1480.92 PLN
Availability: OutOfStock

Belimo

zł1,480.92

VAT included

zł1,204.00 tax excluded

Active contact sensor for measuring humidity and temperature on pipe surfaces. AC/DC 24 V supply, 0...5 V and 0...10 V output signals, and a 2 m cable.

Enthalpy or dew point can be selected as the output signal instead of humidity. The housing has an IP65 / NEMA 4X protection rating.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo 22HTH-110X

Active contact sensor for measuring relative or absolute humidity and temperature on pipe surfaces. An enthalpy or dew point signal can be selected instead of the humidity signal.

Key features

Nominal supply: AC/DC 24 V.
Humidity and temperature output signals: 0...5 V, 0...10 V.
Relative humidity measuring range: 0...100% RH.
Absolute humidity measuring range: 0...50 g/m³ (default setting) or 0...80 g/m³.
Enthalpy measuring range: 0...85 kJ/kg.
Selectable temperature measuring ranges: S0 -40...60°C, S1 0...50°C, S2 -15...35°C, S3 -20...80°C.
Cable length: 2 m.
Electrical connection: plug-in terminal block with spring terminals, max. 2.5 mm².
Housing protection rating: IP65 / NEMA 4X.

The maximum temperature measuring range does not indicate the permissible medium temperature. Medium temperature according to the technical datasheet: -20...60°C.
