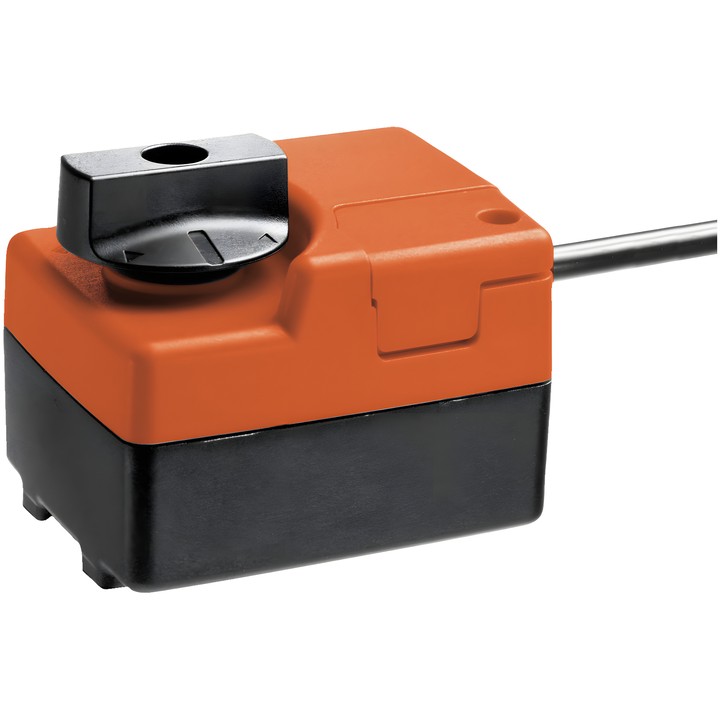

Belimo TRY230 – actuator for ball valves

Electronic rotary actuator with position indicator and mechanical rotation-angle limiter. Direct mounting on the ball valve is carried out using one screw.

Key features and technical data

• Motor torque: 2 Nm.
• Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
• Control: Close/Open, 3-point.
• Motor running time: 35 s / 90°.
• Power consumption during operation: 1.5 W; sizing power for cables: 2.5 VA.
• Power and control connection: Cable 1 m, 3x 0.75 mm².
• Manual override; mechanical position indication.
• Degree of protection IEC/EN: IP40; protection class IEC/EN: II, reinforced insulation.
• Ambient temperature: -7...50°C.
