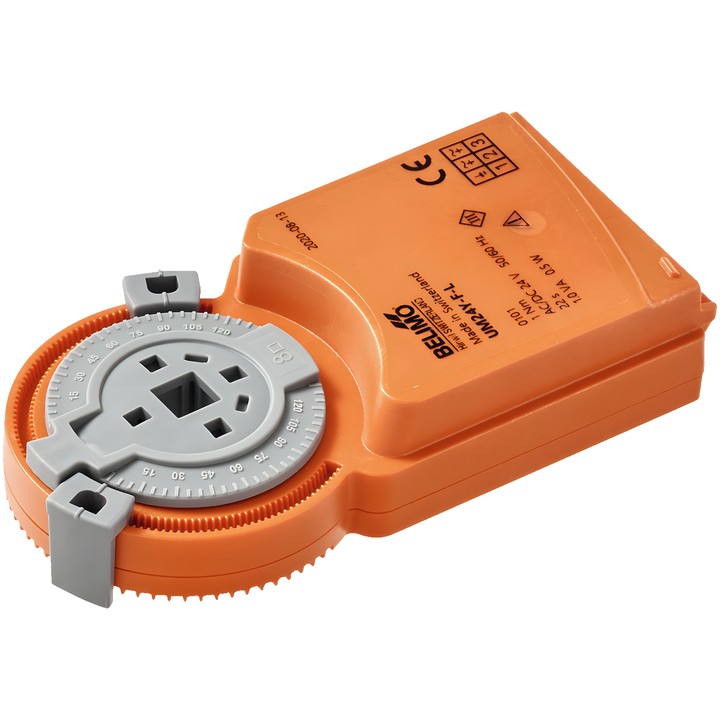

Belimo UM24Y-F-R.1 - damper actuator

Belimo UM24Y-F-R.1 damper actuator

Rotary actuator designed for factory installation in building services equipment. The documentation specifies an air damper size of up to approx. 0.2 m².

Main features and specifications

• Torque: 1 Nm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Control: Open/Close, 3-point.
• Motor running time: 22 s / 90°; direction of rotation: clockwise (cw).
• Rotation angle: 0...287.5°, adjustable using mechanical end stops.
• Mechanical connection: form-fit connection 8x8 mm.
• Power consumption during operation: 1 W; at rest: 0.5 W; for wire sizing: 2 VA.
• Power and control connection: Molex Mini-Fit Jr. 39303035 plug. The mating cable-side connector is not included in the scope of delivery.
• IEC/EN protection rating: IP20; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F].
• Manual override: No. Pack: 100 pcs.

The actuator has overload protection and stops automatically when the end stop is reached. An end-stop clip is included; the Z-ARCM anti-rotation clip is not included in the scope of delivery.
