Belimo UM24Y-L.1 - damper actuator

Belimo UM24Y-L.1 – damper actuator

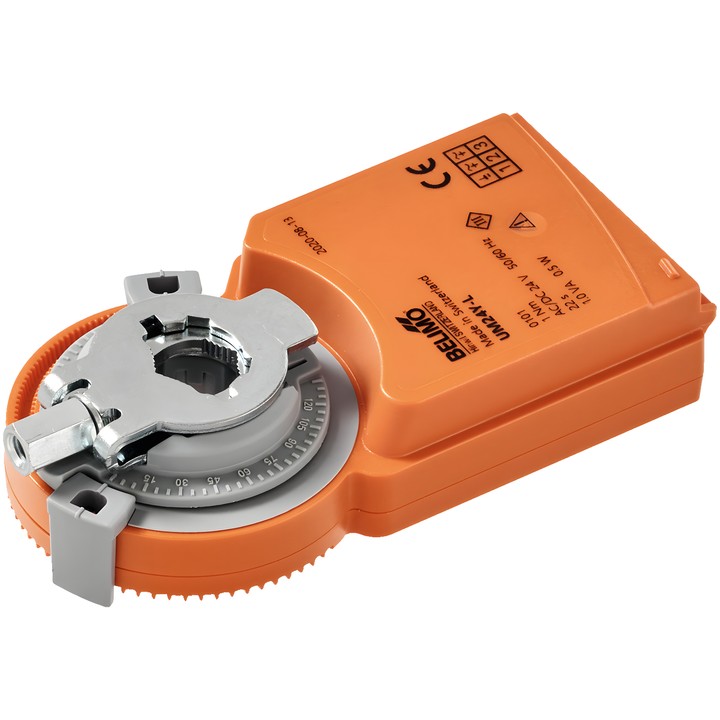

Rotary actuator designed for factory installation in building services equipment. The documentation specifies an air damper size of up to approx. 0.2 m². The actuator mounts directly on the damper shaft using a universal clamp.

Key features and specifications

• Torque: 1 Nm; rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Control: 3-point Close/Open; motor direction of rotation: counter-clockwise (ccw).
• Motor running time: 22 s / 90°; rotation angle: 0...185°, adjustable using mechanical end stops.
• Power consumption during operation: 1 W; in the rest position: 0.5 W; for wire sizing: 2 VA.
• Mechanical connection: universal clamp for 6...12.7 mm. Manual override: No.
• Electrical connection: Molex Mini-Fit Jr. 39303035 connection plug. The cable-side mating connector is not included in the scope of delivery.
• Degree of protection IEC/EN: IP20; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F]. Multipack: 100 pcs.

The actuator is protected against overload and stops automatically when it reaches the end stop. A mechanical end-stop clip is included; the Z-ARCM anti-rotation clip is not included in the scope of delivery.
