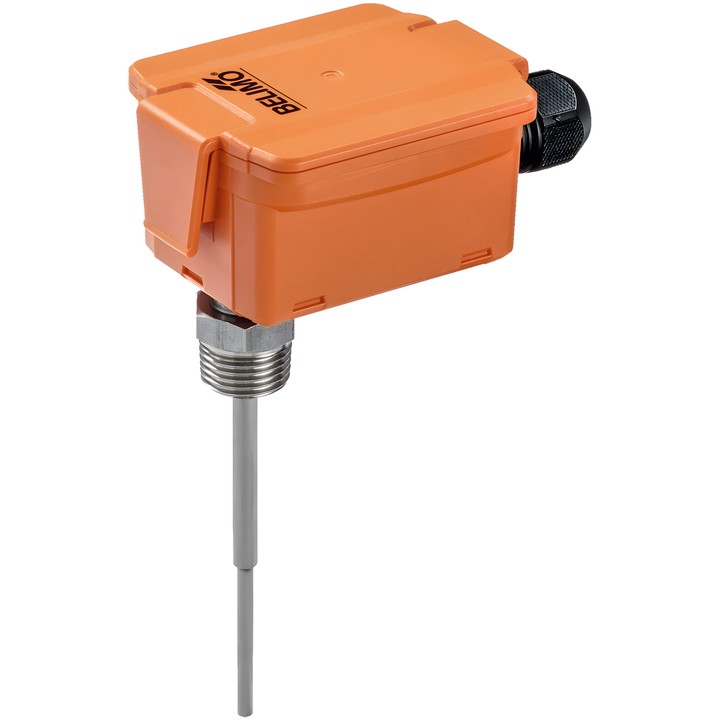

Belimo 01PT-1LH - Immersion temperature sensor

Name: Belimo 01PT-1LH - Immersion temperature sensor
Brand: Belimo
SKU: 01PT-1LH
Price: 225.82 PLN
Availability: BackOrder

Belimo

zł225.82

VAT included

zł183.59 tax excluded

Passive Belimo 01PT-1LH immersion temperature sensor for measuring liquid temperature. NTC10k (10k2) output signal, stainless steel probe 50 mm long and 6/4 mm in diameter, R 1/2" connection.

The sensor has a fast response characteristic, IP65 / NEMA 4X protection rating and a pluggable spring terminal block for wires up to 2.5 mm².

Delivery in approx. 14 days

Belimo 01PT-1LH – immersion temperature sensor

Passive sensor for measuring liquid temperature, equipped with a stainless steel probe and R 1/2" connection. It features a fast measurement response.

Key features

Output signal: NTC10k (10k2).
Probe length: 50 mm; probe diameter: 6/4 mm.
Measuring range for NTC..: -50...150°C [-60...300°F].
Accuracy for NTC..: ±0.2°C @ 25°C [±0.35°F @ 77°F].
Typical time constant τ (63%) in a water pipe: 2.5 s.
Probe: V4A stainless steel (1.4404, 1.4571); R 1/2" thread; nominal pressure PN10.
Electrical connection: pluggable spring terminal block, max. 2.5 mm².
Protection rating: IP65 / NEMA 4X.
