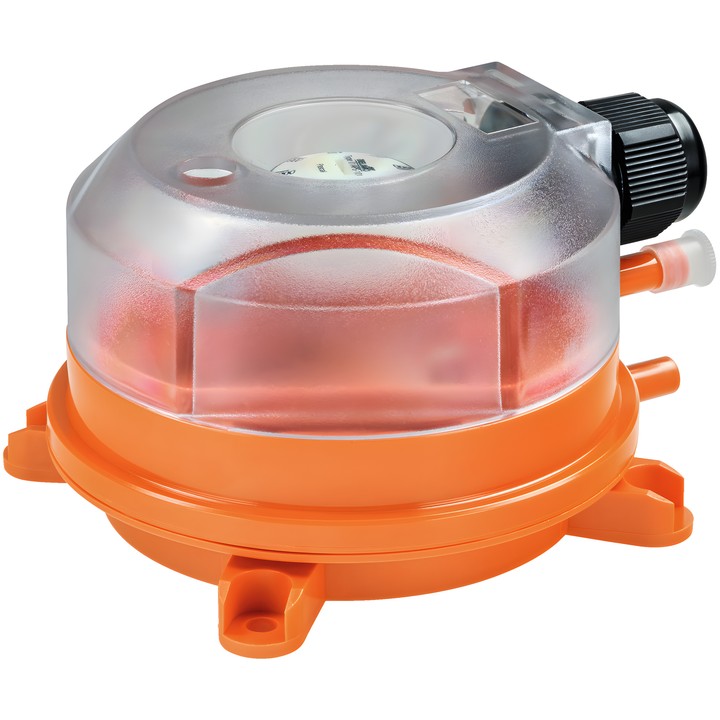

Belimo 01APS-10U.1 - differential pressure switch

Name: Belimo 01APS-10U.1 - differential pressure switch
Brand: Belimo
SKU: 01APS-10U.1
Price: 117.16 PLN
Availability: BackOrder

Belimo

zł117.16

VAT included

zł95.25 tax excluded

Differential pressure switch for monitoring positive pressure, negative pressure and differential air pressure, as well as other non-flammable, non-aggressive gases. Measuring range 50...500 Pa, switching output and switching-point setting with automatic reset.

Multipack of 45 pcs. Version without tubing and connection components.

Delivery in approx. 14 days

Belimo 01APS-10U.1 differential pressure switch

Device for monitoring positive pressure, negative pressure and differential pressure of air or other non-flammable, non-aggressive gases in stationary HVAC systems. Equipped with adjustable switching point and automatic reset.

Key features

Pressure measuring range: 50...500 Pa (0.20...2.00 inch WC).
Output signal: switch; max. contact load 1,0 A / AC 250 V.
Electrical connection: terminals for wires 0.5...1.5 mm².
Protection rating: IP54 and NEMA 13.
Multipack of 45 pcs.; without tubing and connection components.

Switching-point parameters apply to vertical installation, recommended with the pressure ports pointing downwards. Installing the pressure switch upside down is not permitted.
