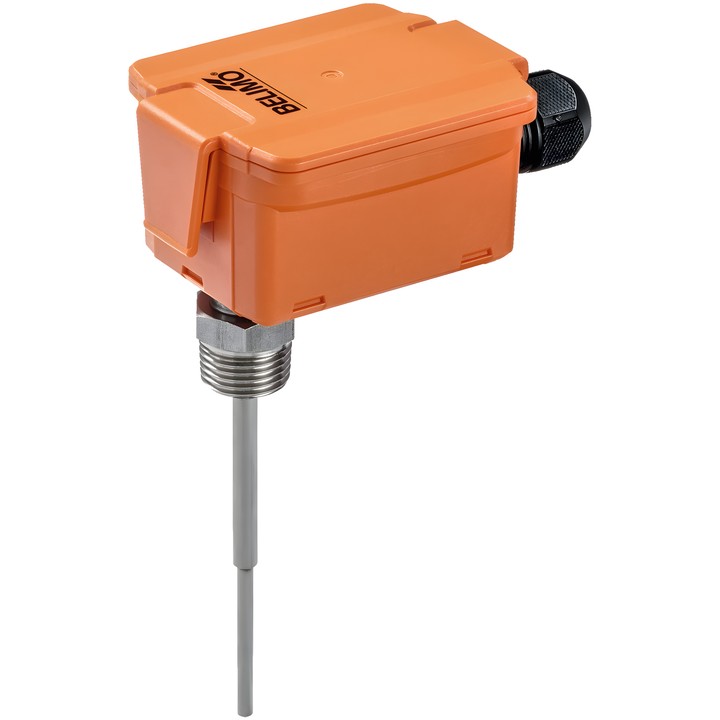

Belimo 01PT-1LL - Immersion temperature sensor

Name: Belimo 01PT-1LL - Immersion temperature sensor
Brand: Belimo
SKU: 01PT-1LL
Price: 225.82 PLN
Availability: BackOrder

Belimo

zł225.82

VAT included

zł183.59 tax excluded

Passive Belimo 01PT-1LL immersion temperature sensor for measuring the temperature of liquid media. NTC10k (10k2) output signal; the stainless steel probe is 100 mm long and has a diameter of 6/4 mm.

The sensor has an R 1/2" connection, IP65 / NEMA 4X protection rating and a fast-response characteristic.

Delivery in approx. 14 days

Belimo 01PT-1LL – immersion temperature sensor

Passive sensor with a stainless steel probe for measuring the temperature of liquid media. Model 01PT-1LL has an NTC10k (10k2) output signal and a 100 mm probe.

Key features and specifications

Output signal: NTC10k (10k2).
Probe length: 100 mm; probe diameter: 6/4 mm.
Probe material: V4A stainless steel (1.4404, 1.4571); R 1/2" thread.
Measuring range for NTC..: -50...150°C [-60...300°F].
Accuracy for NTC..: ±0.2°C @ 25°C [±0.35°F @ 77°F].
Time constant τ (63%) in a water pipe: typically 2.5 s.
Electrical connection: pluggable terminal strip with spring terminals, max. 2.5 mm².
Protection rating: IP65 according to IEC/EN and NEMA 4X according to NEMA/UL.
Nominal pressure: PN10.

The device is intended for stationary heating, ventilation and air-conditioning installations, within the application limits specified by the manufacturer.
