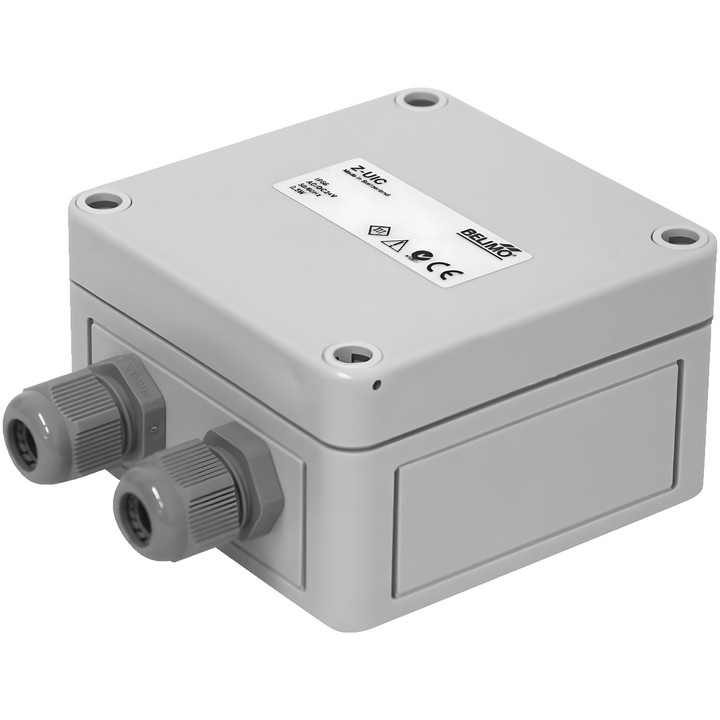

Belimo Z-UIC - voltage/current signal converter

Belimo Z-UIC signal converter

Z-UIC is a voltage/current signal converter with an AC/DC 24 V power supply. The power supply and control are not galvanically isolated from each other.

Key technical data

• Input: 0(2)...10 V or 0(4)...20 mA; output: 0(4)...20 mA.
• Nominal voltage: AC/DC 24 V; voltage range: AC 19.2...28.8 V / DC 19.2...28.8 V.
• Power consumption: DC 0.2 W / AC 0.2 VA.
• Nominal resistance: 100 kΩ; linearity: max. 1%.
• 4...20 mA output load: 0...600 Ω (wire resistance + controller input resistance).
• Connection: terminals for Cu wire 1.5 mm² or Cu stranded conductor 1.0 mm² (cable diameter 5...9.5 mm, 4 cores).
• Ingress protection: IP66; ambient temperature: -30...50°C [-22...122°F].

The controller control signal is selected using a jumper: jumper fitted — 0...20 mA → 0...10 V (factory setting); jumper removed — 0...20 mA → 0...20 mA.
