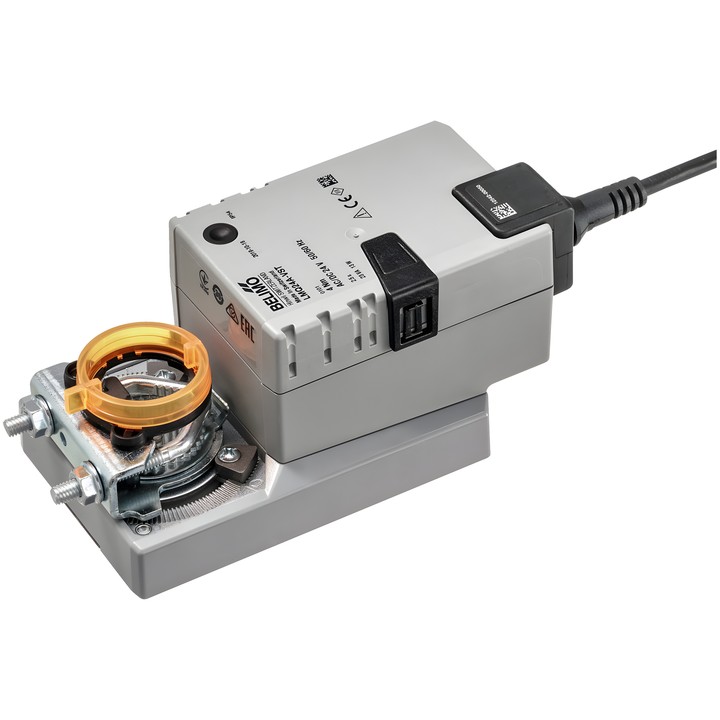

Belimo LMQ24A-VST - rotary actuator for VAV and CAV dampers

Name: Belimo LMQ24A-VST - rotary actuator for VAV and CAV dampers
Brand: Belimo
SKU: LMQ24A-VST
Price: 1905.27 PLN
Availability: OutOfStock

Belimo

zł1,905.27

VAT included

zł1,549.00 tax excluded

VAV-Universal rotary actuator for VAV and CAV units, with a torque of 4 Nm and AC/DC 24 V supply. PP communication control, motor running time 2.5 s / 90°.

Equipped with a universal shaft clamp 8...26.7 mm and a 0.5 m cable with VST connector. IEC/EN IP54 degree of protection.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LMQ24A-VST actuator

Ready-to-connect VAV-Universal rotary actuator designed for VAV and CAV units in building services systems. According to the technical data sheet: for air dampers with an area of up to approx. 1 m².

Key features and parameters

Motor torque: 4 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
Control: PP communication; motor running time: 2.5 s / 90°.
Angle of rotation: 95°; mechanical angle-of-rotation stops and mechanical position indicator.
Power consumption during operation: 13 W; in the rest position: 2 W; sizing power: 23 VA.
Manual override using a push button, with locking option.
Mechanical connection: universal shaft clamp 8...26.7 mm.
Power and control connection: 0.5 m cable with VST connector.
IEC/EN IP54 degree of protection; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...40°C [-22...104°F].

After system start-up and whenever the angle of rotation is changed, adaptation must be performed by pressing the adaptation button once.
