Belimo 01ST-1F3 - passive contact temperature sensor

Belimo 01ST-1F3 - passive contact temperature sensor

Belimo
zł70.48
VAT included
zł57.30 tax excluded

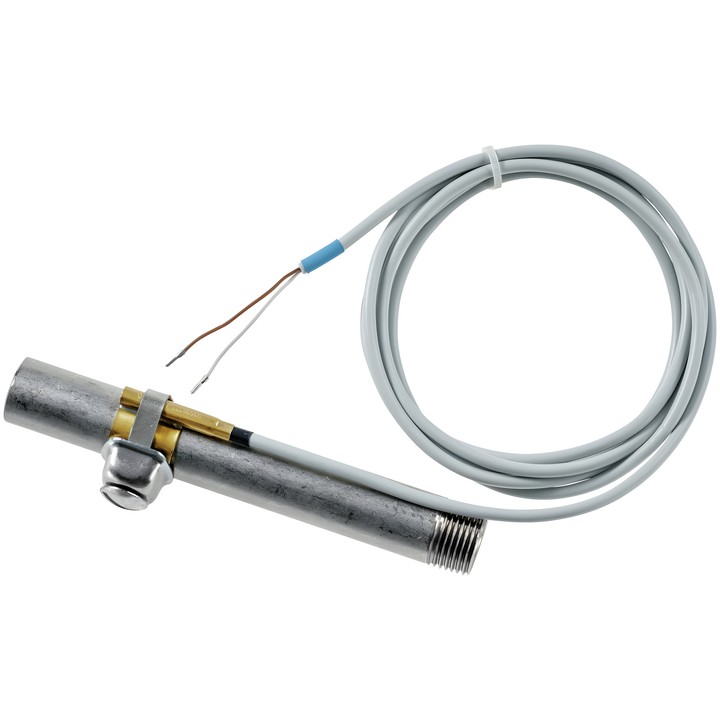

Belimo 01ST-1F3 passive contact temperature sensor with NTC1k8 output signal, designed to measure temperature on pipes and curved surfaces.

The 6 mm diameter probe is connected by a 2 m, 2-wire cable. A mounting strap for pipes ø20...110 mm is included.

Delivery in approx. 14 days
Share

Belimo 01ST-1F3 contact temperature sensor

Passive sensor for measuring temperature on pipes and curved surfaces. Model 01ST-1F3 has an NTC1k8 output and a brass probe connected by a PVC cable.

Key features

  • Passive temperature sensor output signal: NTC1k8.
  • Measuring range: -35...100°C [-30...210°F].
  • Temperature accuracy for NTC1k8: ±0.5°C @ 25°C [±0.9°F @ 77°F].
  • Measuring current for NTC1k8: <0.1 mA @ 25°C [77°F].
  • Probe diameter: 6 mm.
  • Electrical connection: 2 m, 2-wire cable.
  • IEC/EN protection rating: IP65.
  • Included: A-22P-A47 mounting strap for pipes ø20...110 mm [0.8...4.3"].

Time constant τ (63%) on a water pipe using contact fluid: typically 17 s.

  • Brand
    Belimo
  • Reference
    01ST-1F3
  • EAN13
    7630498117749

  • Electrical connection
    Cable
  • Measured values
    Temperature
  • Output signal
    NTC1k8
  • Passive temperature sensor output
    NTC1k8

Techniczna karta katalogowa

Download (948.77KB)

Instrukcja montażu

Download (398.39KB)

Techniczna karta katalogowa – 01ST-1..

Download (941.24KB)

EU Declaration of Conformity – 01ST-1F3

Download (37.84KB)

Environmental Declaration – 01ST..

Download (71.72KB)
