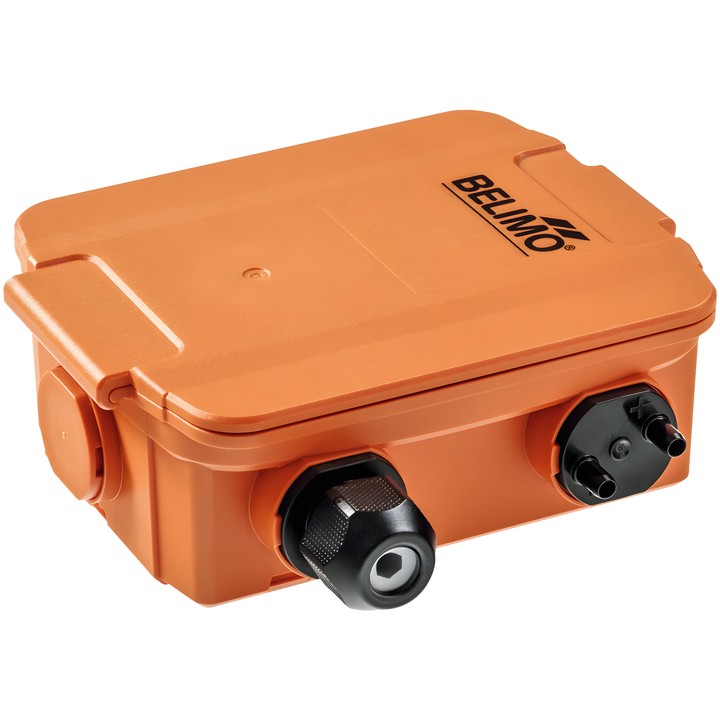

Belimo 22ADP-18Q - air differential pressure sensor

Belimo 22ADP-18Q - air differential pressure sensor

Belimo
zł847.78
VAT included
zł689.25 tax excluded

Belimo 22ADP-18Q air differential pressure sensor with a measuring range of -150...250 Pa and 8 selectable measuring ranges. AC/DC 24 V supply; outputs 0...5 V, 0...10 V or 4...20 mA.

IP65 / NEMA 4X enclosure. Supplied with mounting plate, mounting hardware, 2 duct connections and 2 m PVC tubing.

Delivery in approx. 14 days
Share

Belimo 22ADP-18Q – air differential pressure sensor

The sensor is designed to monitor the differential pressure of air and other non-flammable, non-aggressive gases. The documentation specifies use in fixed HVAC installations, including monitoring air filters and fan V-belts.

Key features

  • Measuring range: -150...250 Pa; 8 selectable measuring ranges.
  • Rated voltage: AC/DC 24 V.
  • Voltage output: 1 x 0...5 V, 0...10 V, min. resistance 10 kΩ; 0...5/10 V signal selectable by switch.
  • Current output: 1x 4...20 mA, max. resistance 500 Ω. When the voltage output is switched from 0...10 V to 0...5 V, the current range changes from 4...20 mA to 4...12 mA.
  • Adjustable typical response time: 0.8 s or 4.0 s.
  • Enclosure protection rating: IP65 / NEMA 4X.
  • Electrical connection: detachable spring terminal block, max. 2.5 mm².
  • Supplied with: mounting plate, wall plugs, screws and a complete set of duct connections comprising 2 m PVC tubing and 2 plastic connections.

Variant 22ADP-18Q is listed among the types without a display and without the Auto-Zero function.

  • Brand
    Belimo
  • Reference
    22ADP-18Q
  • EAN13
    7630498100963

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    0...5 V 0...10 V 4...20 mA
  • Pressure measuring range
    -150...250 Pa | -0.6...1 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Current output power [Range]
    1x 4...20 mA, max. resistance 500 Ω

Techniczna karta katalogowa

Download (3.56MB)

Instrukcja montażu

Download (993.71KB)

Techniczna karta katalogowa – 22ADP-18Q..

Download (3.56MB)

EU Declaration of Conformity – 22ADP-18Q

Download (39.8KB)

Environmental Declaration – 22ADP..

Download (72.07KB)
