Belimo ZTH EU service tool

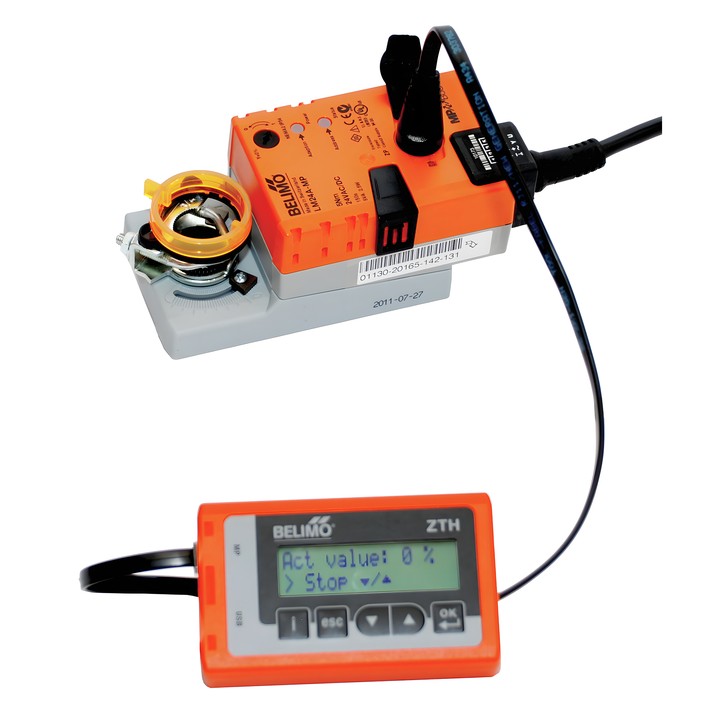

ZTH EU is used to service configurable actuators, VAV controllers and Belimo HVAC devices equipped with a communication interface. Once connected, it reads the device data and displays the setting options available for that type.

Key features

• Parameterisation in point-to-point (PP) mode via the service socket or actuator terminals.
• ZIP-USB function: operates as a level converter between a computer’s USB interface and a Belimo MP device.
• MP-Bus tester function, including signal level measurement and a telegram counter.
• Backlit LCD: 2 x 16 characters.
• USB 2.0 interface with a type B connector; supplied with a USB A–B cable (1 m) and a ZK1-GEN cable (3 m).
• Power supply from the connected actuator: AC 24 V, 50/60 Hz or DC 24 V; power consumption during operation: 1 W.
• Dimensions L x W x D: 95 x 55 x 25 mm; weight: approx. 135 g.

Connection is permitted only to Belimo devices with 24 V PELV voltage and a PP/MP interface. Direct connection of the ZTH EU as a service tool to the MP-Bus or an MP client is not possible; use the service socket or disconnect the MP device from the bus while connecting.
