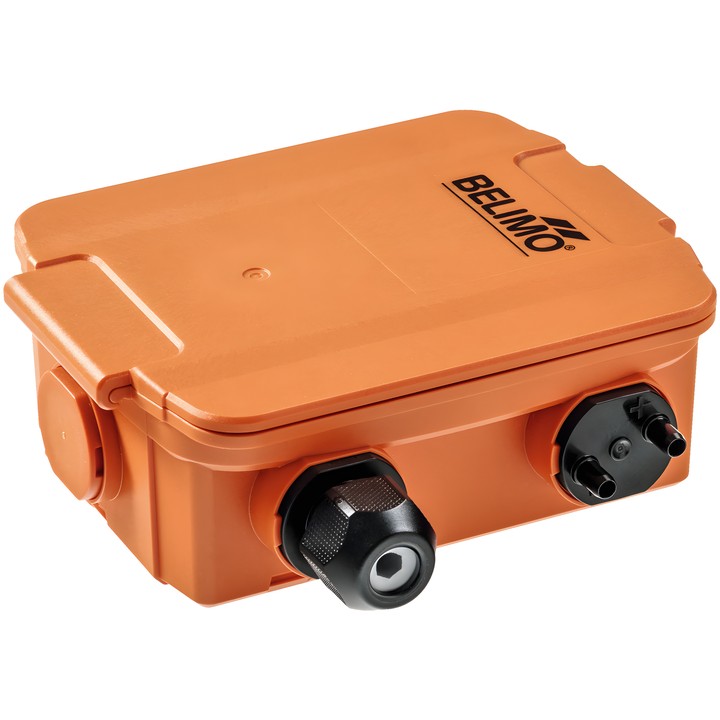

Belimo 22ADP-154 air differential pressure sensor with a measuring range of -100...2500 Pa. It measures differential pressure and volumetric flow; supports Modbus RTU and 0...5 V and 0...10 V outputs.

AC/DC 24 V supply, 8 selectable measuring ranges and an enclosure rated IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 22ADP-154 air differential pressure sensor

The device measures differential pressure in air and non-aggressive gases. Volumetric flow is calculated from the differential pressure, k-factor and altitude above sea level.

Key features

  • Pressure measuring range: -100...2500 Pa (-0.4...10 inch WC); 8 selectable measuring ranges.
  • Communication: Modbus RTU.
  • Two voltage outputs: 0...5 V or 0...10 V; selectable by switch, minimum resistance 10 kΩ. AOU1 corresponds to differential pressure, while AOU2 corresponds to volumetric flow.
  • Nominal voltage: AC/DC 24 V.
  • Typical response time: adjustable to 0.8 s or 4.0 s.
  • Electrical connection: detachable spring terminal block, max. 2.5 mm².
  • Enclosure rating: IP65 / NEMA 4X.

The set includes a mounting plate, mounting kit and two plastic duct connectors with 2 m PVC tubing.

  • Brand
    Belimo
  • Reference
    22ADP-154
  • EAN13
    7630498100819

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure Volume flow
  • Output signal
    Modbus 0...5 V 0...10 V
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU

Techniczna karta katalogowa

Download (3.69MB)

Instrukcja montażu

Download (1.56MB)

Techniczna karta katalogowa – 22ADP-154..

Download (3.69MB)

EU Declaration of Conformity – 22ADP-154

Download (39.79KB)

Environmental Declaration – 22ADP..

Download (72.07KB)
