Belimo EXT-AC-L200 - probe for measuring air volume flow

Name: Belimo EXT-AC-L200 - probe for measuring air volume flow
Brand: Belimo
SKU: EXT-AC-L200
Price: 559.65 PLN
Availability: OutOfStock

Belimo

zł559.65

VAT included

zł455.00 tax excluded

Probe for measuring air volume flow in rectangular ducts. Probe length: 200 mm. Used in combination with the 22ADP-.. differential pressure sensor; measurement is possible at air velocities from 2 to 25 m/s.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

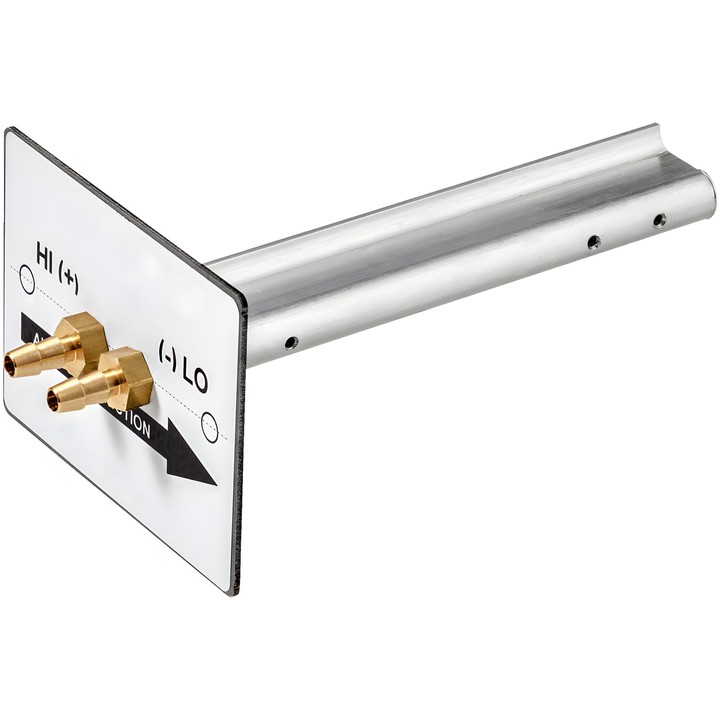

Belimo EXT-AC-L200 air flow probe

The EXT-AC-L200 model is designed for rectangular ducts. In combination with the 22ADP-.. differential pressure sensor, it is used to measure air volume flow.

Key features

Probe length: 200 mm.
Air velocity range at which measurement is possible: 2 to 25 m/s.
Medium: air.
Medium temperature: 5...95°C [41...203°F].
Probe material: aluminium.

Installation and commissioning notes

Several probes must be used in rectangular ducts with a height greater than 300 mm. When commissioning, the 22ADP-.. differential pressure sensor must be configured: change the fan manufacturer to AirConcepts, change the k factor, and set the lower and upper air volume flow values. The probe's k factor is given in the installation instructions. Commissioning can be carried out using the Belimo Duct Sensor Assistant App or via bus communication.
