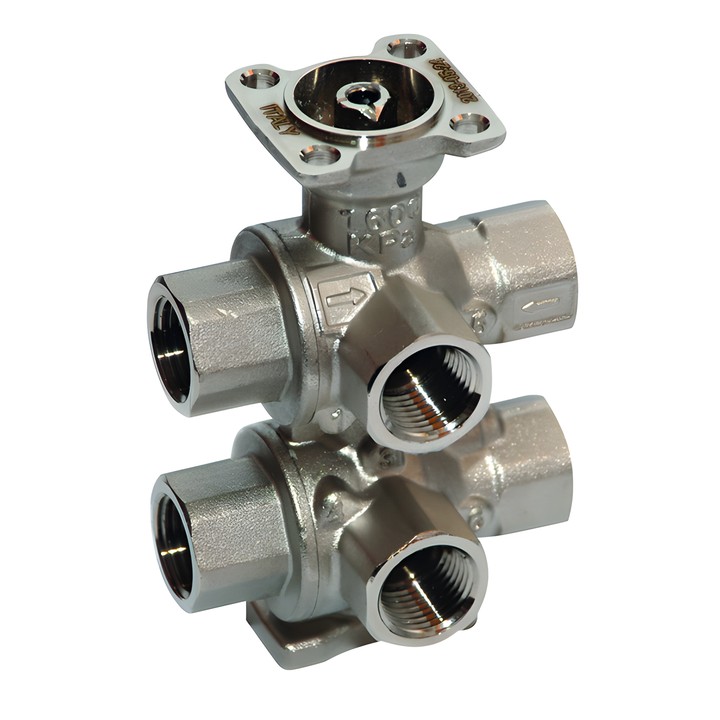

Belimo R3015-P25-1P3-B2 - 6-way ball valve with regulating orifice

Name: Belimo R3015-P25-1P3-B2 - 6-way ball valve with regulating orifice
Brand: Belimo
SKU: R3015-P25-1P3-B2
Price: 592.16 PLN
Availability: BackOrder

Belimo

zł592.16

VAT included

zł481.43 tax excluded

6-way ball valve with regulating orifice for switching or analog control of water flow in heating and cooling units in closed-loop water systems. Two sequences are operated by one 90° rotary actuator.

DN 15, Rp 1/2" female thread, PN 16. Kvs sequence I: 0.25 m³/h; Kvs sequence II: 1.3 m³/h.

Delivery in approx. 14 days

Belimo R3015-P25-1P3-B2

6-way regulating ball valve with regulating orifice, designed for closed-loop water systems. It enables switching or analog control of water flow in heating and cooling units. The valve is actuated by a rotary actuator.

Key features and specifications

DN 15; Rp 1/2" female threaded connection according to ISO 7-1; PN 16.
Kvs sequence I: 0.25 m³/h; Kvs sequence II: 1.3 m³/h.
Medium: water or water with max. 50% vol. glycol; medium temperature: 6...80°C [43...176°F].
Maximum differential pressure ∆pmax: 100 kPa; closing pressure ∆ps: 350 kPa; quiet operation Δpv100 <50 kPa.
Linear flow characteristic; leakage class A (EN 12266-1), bubble-tight.
Rotation angle: 90°; sequence 1: 0...30° (cooling recommended), dead zone: 30...60°, sequence 2: 60...90° (heating recommended).
Nickel-plated brass body, chrome-plated brass closing element, stainless-steel regulating orifice.

Installation is permitted from vertical to horizontal in relation to the spindle. Do not install the valve with its axis pointing downwards.
