Dual air differential pressure sensor with two independent measuring systems. Measuring range -100...2500 Pa, 8 selectable ranges for each system and Modbus RTU communication.

AC/DC 24 V supply, two 0...5 V or 0...10 V voltage outputs and an enclosure rated IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

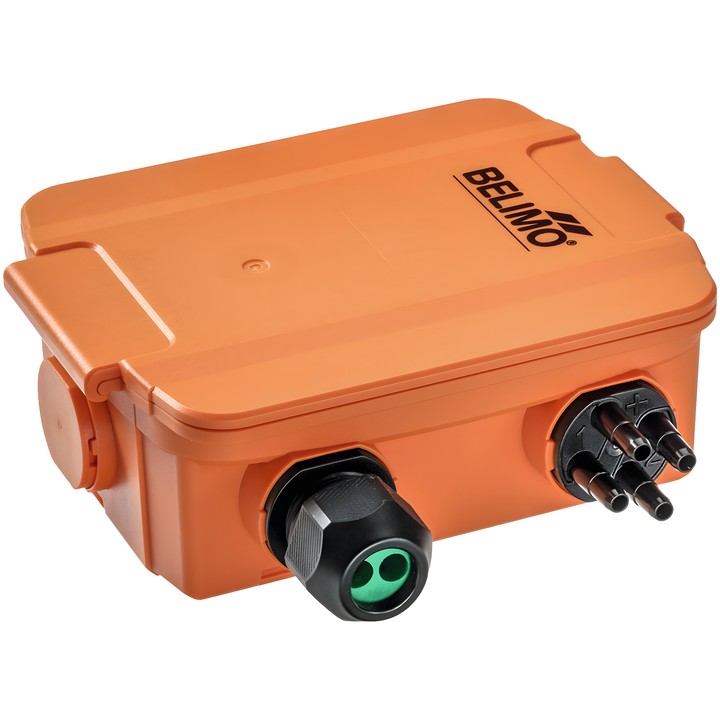

Belimo 22ADP-154D – air differential pressure sensor

This transmitter, with two independent measuring systems, is designed to monitor positive pressure, negative pressure and differential air pressure, as well as other non-flammable, non-aggressive gases. The documentation lists monitoring air filters, fan V-belts and differential pressure systems as typical HVAC applications.

Key features

  • Pressure measuring range: -100...2500 Pa; 8 selectable ranges for each measuring system.
  • Measured values: differential pressure and volumetric flow rate.
  • Communication: Modbus RTU.
  • 2 x 0...5 V, 0...10 V; minimum resistance 10 kΩ. The 0...5/10 V output signal is selectable via a switch.
  • Nominal voltage: AC/DC 24 V.
  • Adjustable typical response time: 0.8 s or 4.0 s.
  • Enclosure protection rating: IP65 / NEMA 4X.
  • Electrical connection: pluggable terminal strip with spring terminals, max. 2.5 mm².

Volumetric flow rate can be configured via Modbus. The scope of delivery includes a mounting plate, mounting hardware, 4 plastic duct connectors and 2 PVC tubes, each 2 m long.

  • Brand
    Belimo
  • Reference
    22ADP-154D
  • EAN13
    7630498117763

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure Volume flow
  • Output signal
    Modbus 0...5 V 0...10 V
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU
