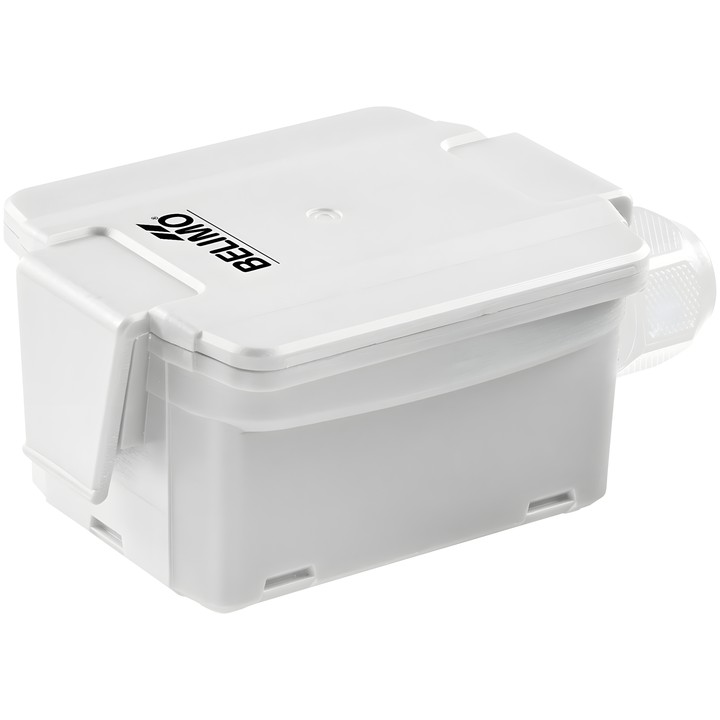

Belimo 01UT-1F - passive outdoor temperature sensor

Name: Belimo 01UT-1F - passive outdoor temperature sensor
Brand: Belimo
SKU: 01UT-1F
Price: 128.23 PLN
Availability: BackOrder

Belimo

zł128.23

VAT included

zł104.25 tax excluded

Passive sensor for measuring outdoor air temperature, with an internal sensing element and NTC1k8 output signal. Measuring range: -35...50°C [-30...120°F].

Housing with IP65 / NEMA 4X protection rating. Connection via a pluggable spring terminal block for wires up to 2.5 mm².

Delivery in approx. 14 days

Belimo 01UT-1F – outdoor temperature sensor

Passive sensor for measuring outdoor air temperature. Model 01UT-1F has an internal sensing element and an NTC1k8 output signal.

Key technical data

Measured value: temperature; medium: air.
Passive sensor output signal: NTC1k8.
Measuring range: -35...50°C [-30...120°F].
Measuring current for NTC1k8: <0.1 mA @ 25°C [77°F].
Accuracy for NTC1k8: ±0.5°C @ 25°C [±0.9°F @ 77°F].
Time constant τ (63%) indoors: typically 854 s.
Protection rating: IP65 / NEMA 4X.
Electrical connection: pluggable spring terminal block, max. 2.5 mm²; cable gland with strain relief for cable ø6...8 mm.
Housing: cover and base made of PC; NBR70 gasket; UV resistant.

The set includes an A-22D-A09 mounting plate, plugs and screws.
