Stord CM35-2025B images

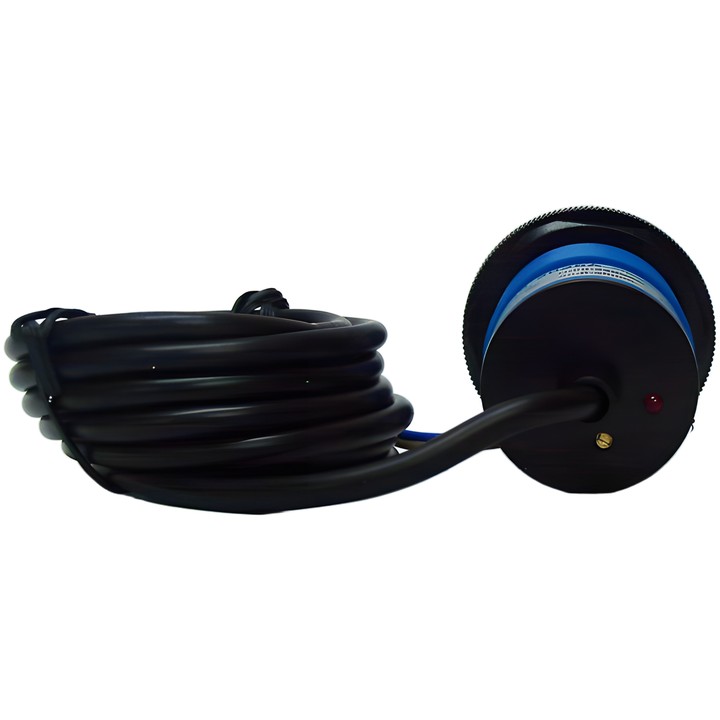

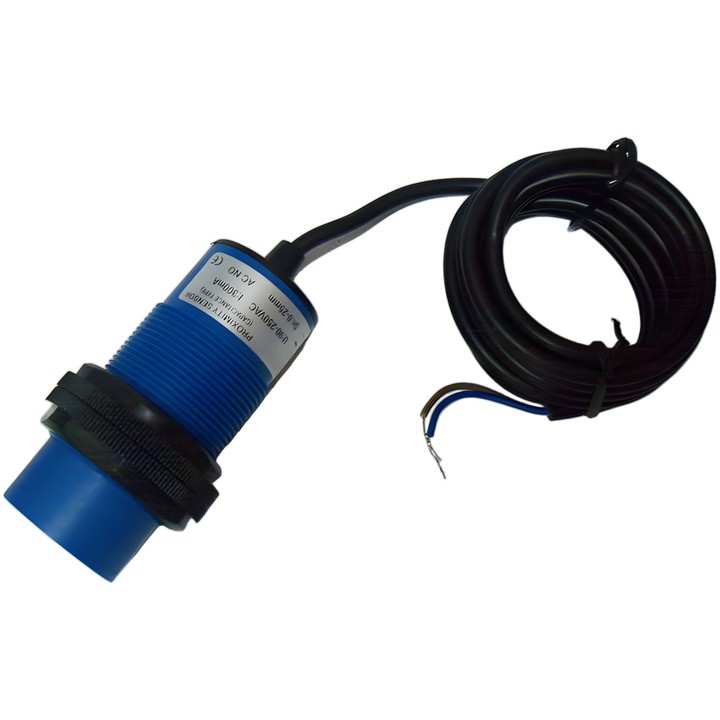

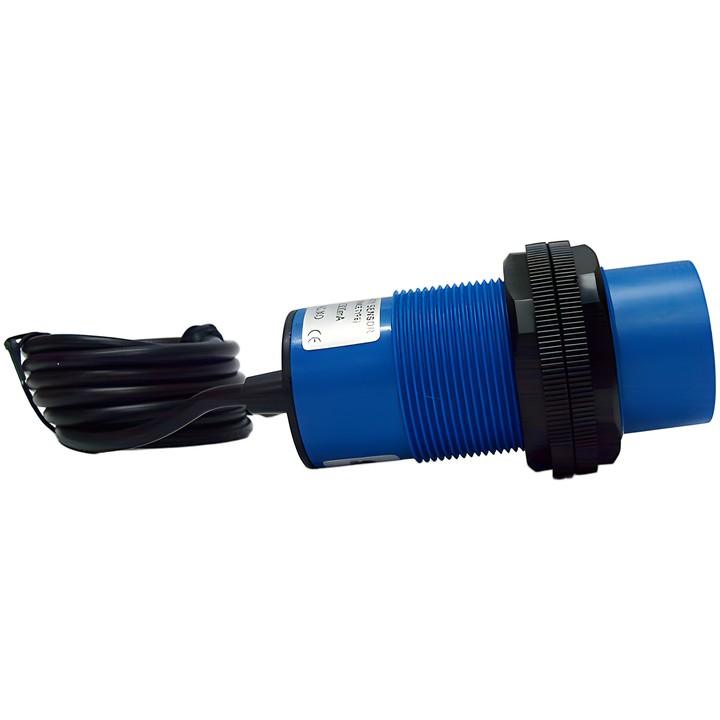

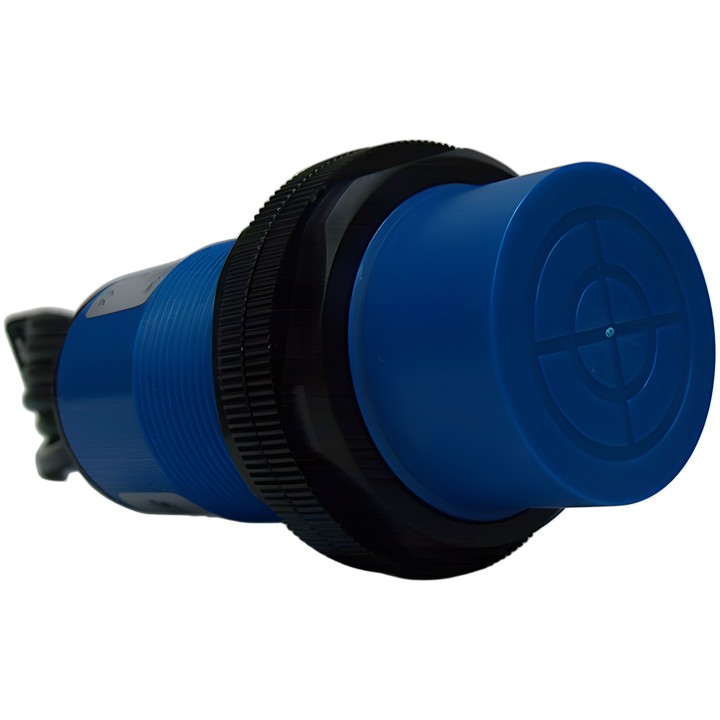

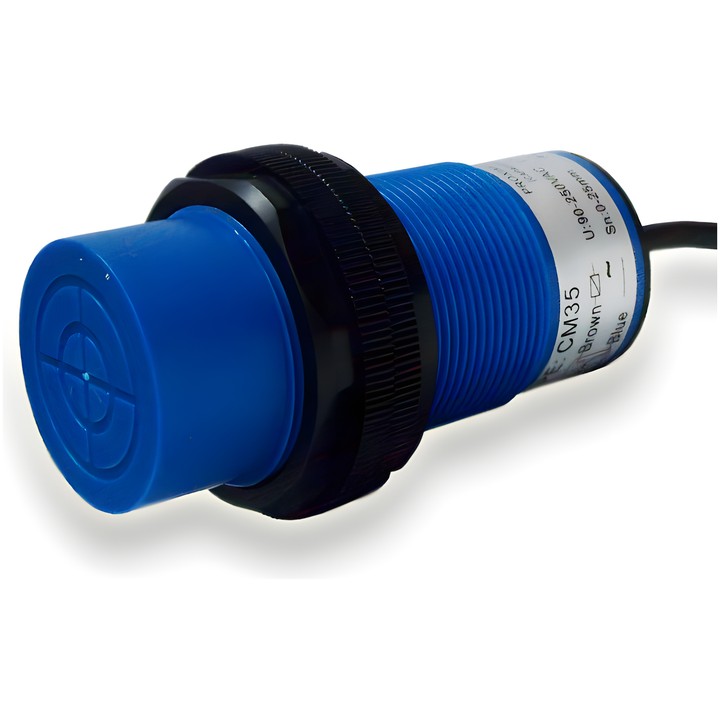

Stord CM35-2025B
Price:
zł116.00
VAT included
zł94.31 tax excluded
Capacitive sensor with an operating range of up to 25 mm, diameter M34X1.5, 2-wire, with NC output.
| Operating range: | 0-25 mm |
| Housing diameter: | M34X1.5 |
| Supply voltage: | 90~250V AC |
| Output type: | 2-wire |
| Output state: | NC |
| Maximum output current: | 300mA AC |
| Switching frequency: | max 10Hz |
| Sensing face type: | protruding |
| Protection rating: | IP 54 |
| Insulation resistance: | 50MΩ |
| Current consumption: | <10mA |
| Operating temperature: | -25°C / +75°C |
| Voltage drop: | <7V |
| Housing: | ABS |
| Sensor length: | 85 mm |
| Power cable length: | 1900 mm |
| Weight: | 155 g |
-
Brand
-
ReferenceCM35-2025B
-
Supply voltage90~250V AC
-
Product typeSensors
-
Maximum output current300 mA AC
-
Operating range0-25 mm
-
Output statusNC
