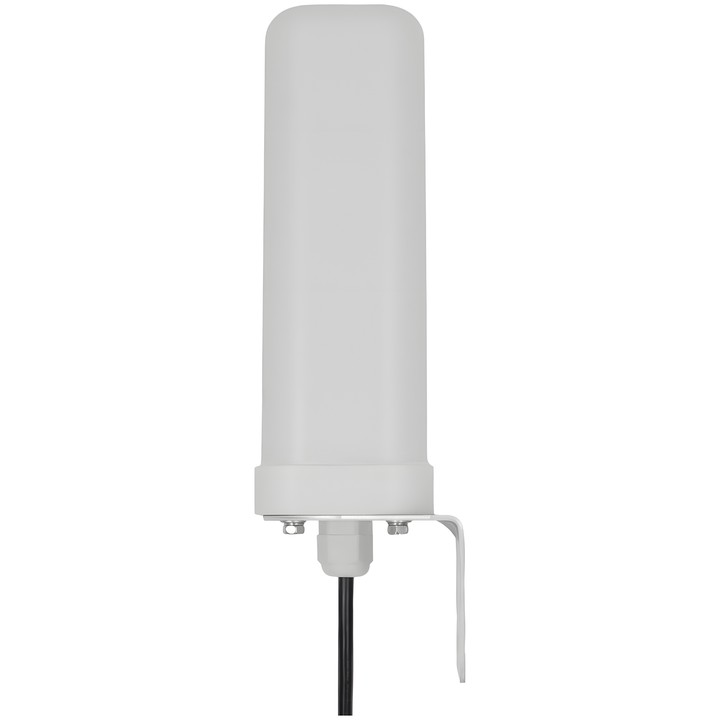

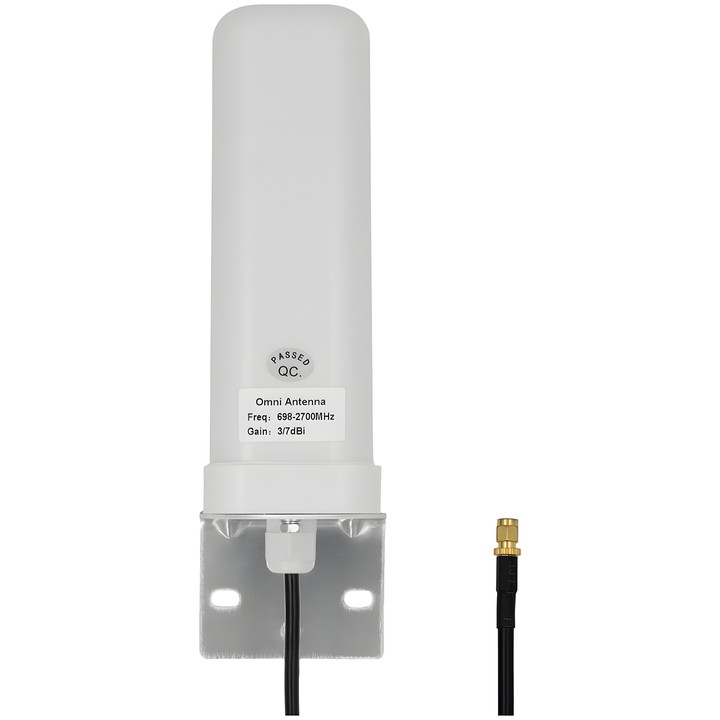

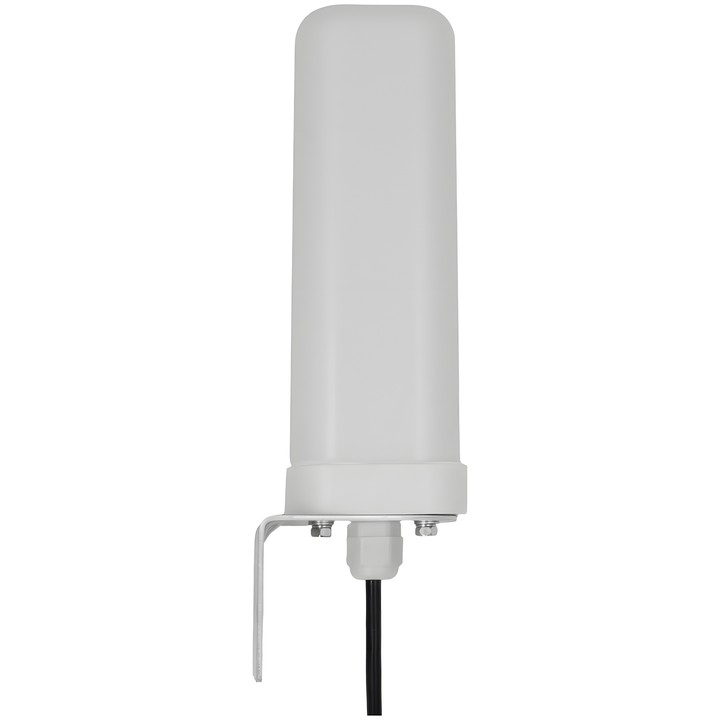

ELETOR AN1-GSM – external antenna for GSM alarm control panels

ELETOR AN1-GSM is an external antenna designed to provide stable and reliable GSM communication in alarm installations, particularly in ELETOR CA-2 GSM systems. Thanks to its wide operating band and high sensitivity, it effectively improves signal quality in areas with poor mobile network coverage – e.g. in livestock buildings, industrial halls, basements or rooms with thick walls.

The antenna allows easy installation outside the building and has a 5-metre cable with a connector, making it easy to integrate with the control panel without the need for additional adapters.

Key technical features:

• Antenna type: Omni-directional (360° directivity in the horizontal plane)

• Frequency range: 698–960 MHz / 1710–2700 MHz

• Gain: 3–7 dBi

• Polarisation: vertical

• Cable length: 5 m

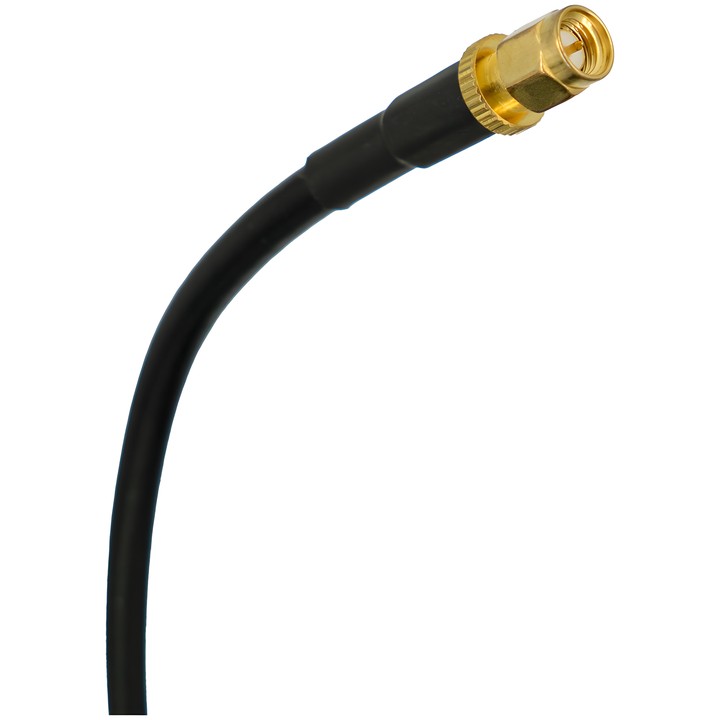

• Connector: standard (matched to the socket on the ELETOR CA-2 GSM control panel)

• Nominal impedance: 50 Ω

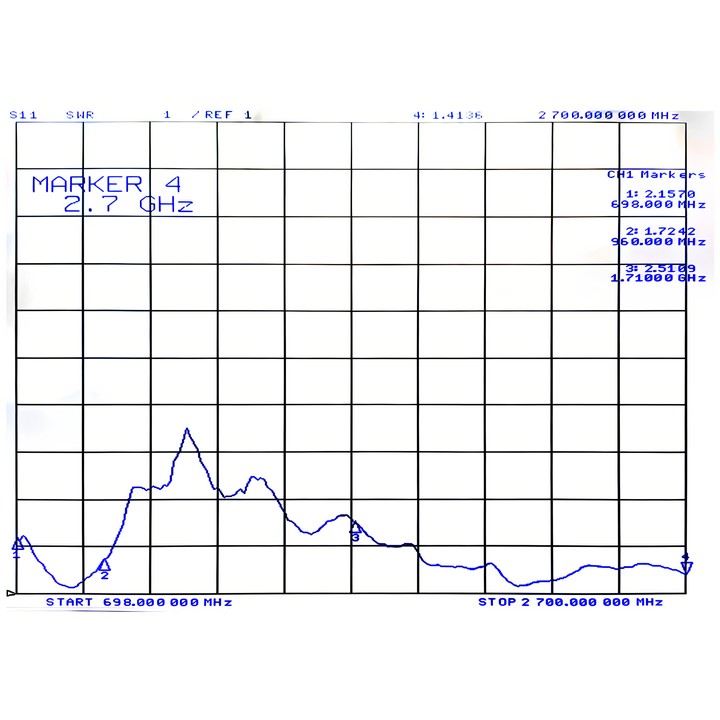

• VSWR: ≤ 2.0

• Surge protection: DC Ground

• Maximum power: 100 W

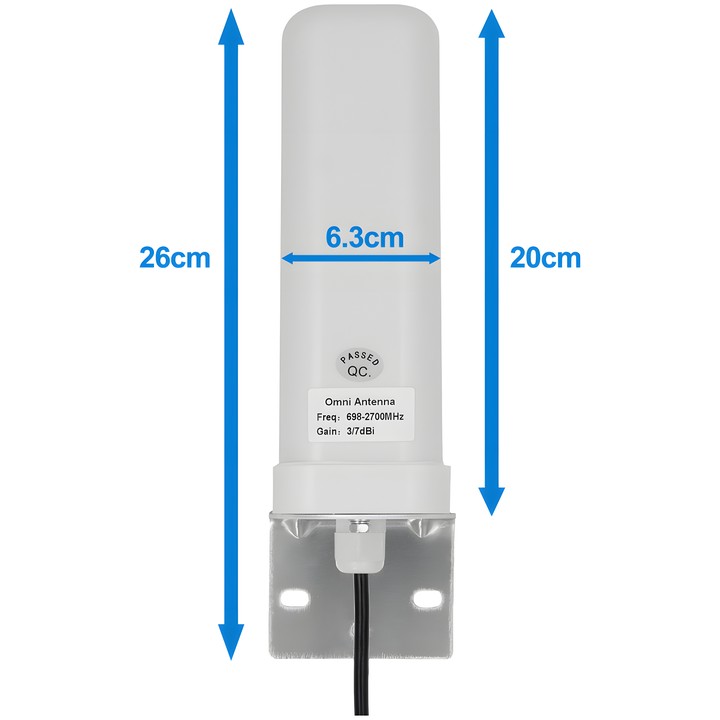

• Dimensions: 63 × 200 mm

• Antenna weight: ~0,25 kg

• Wind resistance: up to 60 m/s

Application:

• Improving coverage for GSM alarm control panels in:

  • livestock buildings (pig houses, poultry houses, cattle sheds)

  • industrial halls and warehouses

  • offices and buildings where signal propagation is impeded

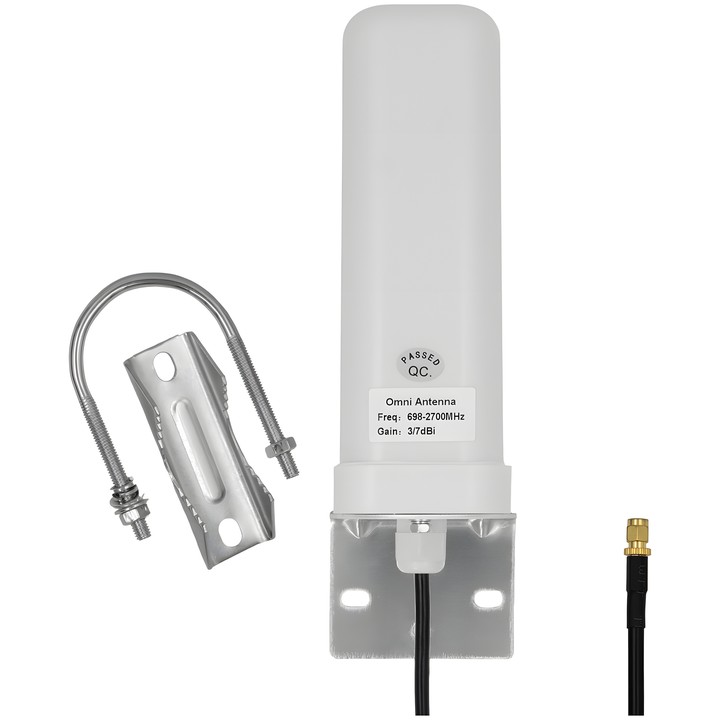

Included:

• ELETOR AN1-GSM antenna

• 5 m cable with connector

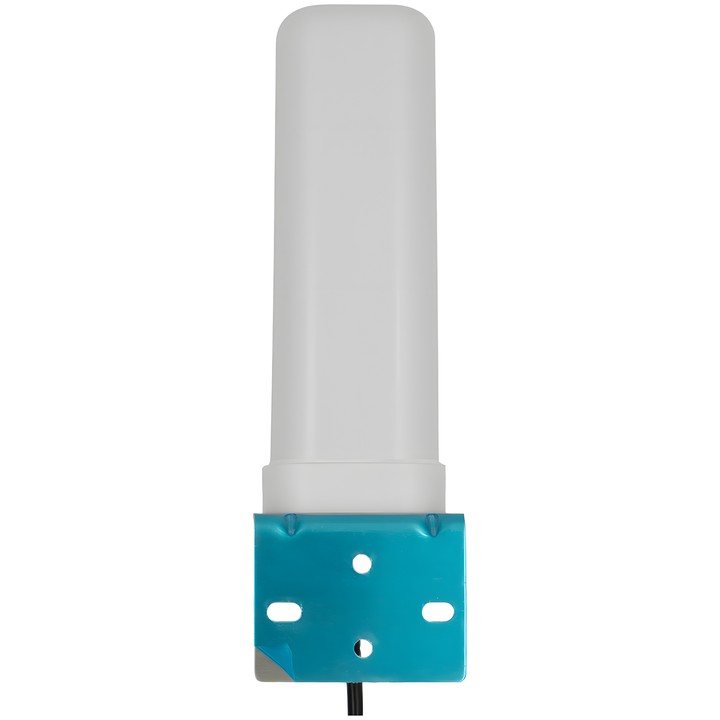

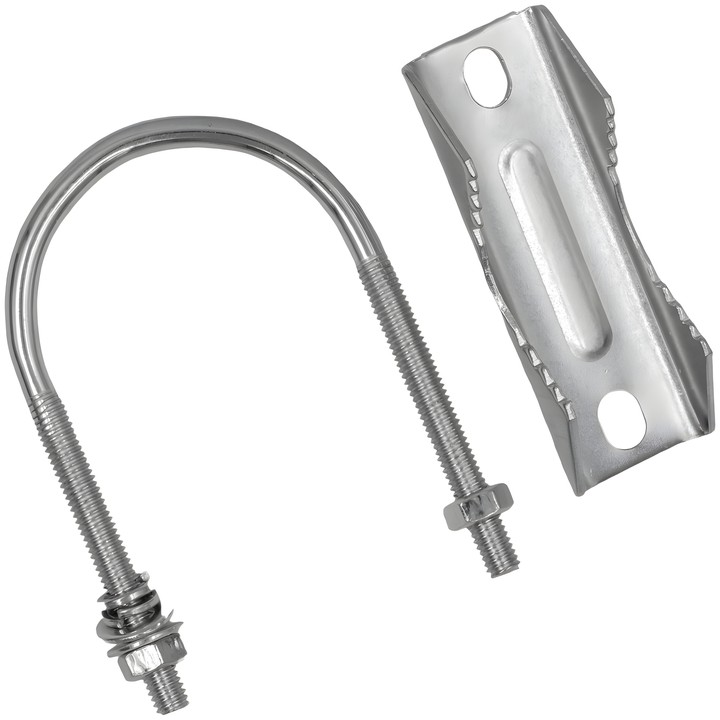

• Mounting bracket

ELETOR AN1-GSM is a robust solution for professional alarm installations, wherever a stable GSM connection is key to system reliability.
