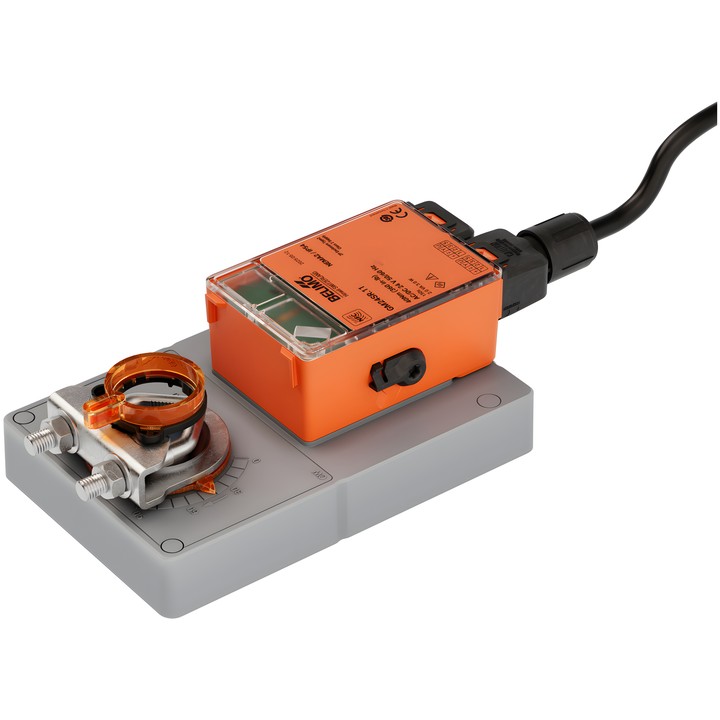

Belimo GM230.13 - 40 Nm damper actuator

Name: Belimo GM230.13 - 40 Nm damper actuator
Brand: Belimo
SKU: GM230.13
Price: 1148.52 PLN
Availability: BackOrder

Belimo

zł1,148.52

VAT included

zł933.76 tax excluded

Belimo GM230.13 damper actuator with a torque of 40 Nm, powered by AC 100...240 V. Open/close or 3-point control; motor running time 150 s / 90°.

Equipped with a universal shaft clamp for 12...26.7 mm, a detachable connection cable and an NFC interface for configuration using Belimo Assistant 2.

Delivery in approx. 14 days

Belimo GM230.13 – damper actuator

Actuator for regulating dampers in technical building systems. The GM230.13 model offers open/close and 3-point control. Device parameters can be adjusted via NFC using Belimo Assistant 2.

Key features and specifications

Motor torque: 40 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: open/close, 3-point.
Motor running time: 150 s / 90°; adjustable within 90...150 s.
Rotation angle: max. 95°; can be electronically limited on both sides using Belimo Assistant 2.
Motor direction of rotation: clockwise (cw); selectable using Belimo Assistant 2.
Universal, reversible shaft clamp: 12...26.7 mm.
Manual adjustment using a side lever with a locking option.
Detachable FRNC (halogen-free) connection cable, 1 m.
NFC interface and green LED indicating operating status.
Power consumption during operation: 3 W; at rest: 0.6 W; for cable sizing: 5.5 VA.
IEC/EN degree of protection: IP54; IEC/EN protection class: II, reinforced insulation.
