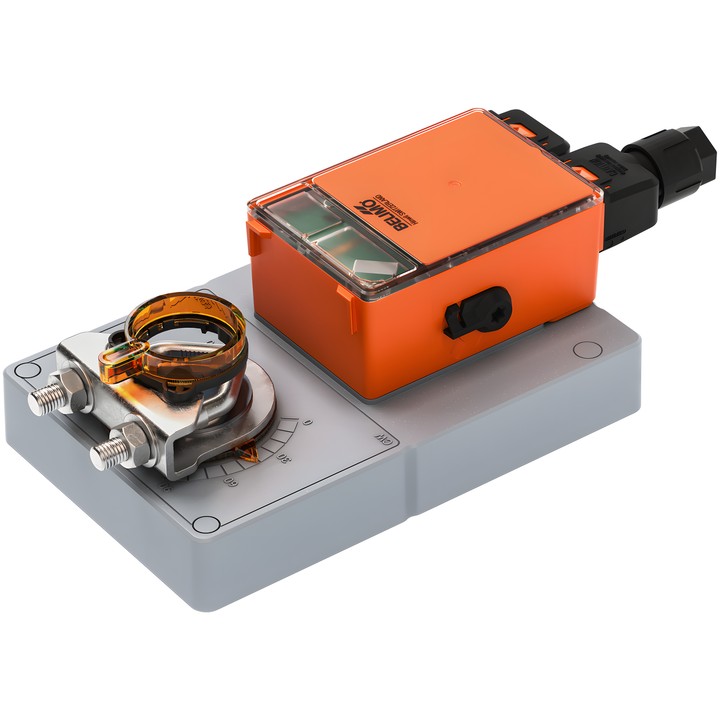

Belimo GM24SR.15 - 40 Nm damper actuator
Price:
zł1,326.19
VAT included
zł1,078.20 tax excluded
The Belimo GM24SR.15 damper actuator delivers 40 Nm torque and is powered by AC/DC 24 V. It supports modulating, open/close and 3-point control, as well as MP-Bus communication.
Running time is 150 s / 90°. The actuator has a universal shaft clamp for 12...26.7 mm, manual adjustment with a lever and IP54 protection.
Belimo GM24SR.15 damper actuator
This actuator is designed to control dampers in stationary heating, ventilation and air-conditioning systems. It can operate with analogue control or receive a digital signal via MP-Bus.
Key features and specifications
- Torque: 40 Nm; rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
- Control: modulating, open/close, 3-point or via MP-Bus communication; maximum 16 MP-Bus nodes.
- Y operating range: 2...10 V; position feedback signal U: 2...10 V.
- Motor running time: 150 s / 90°; adjustable running time: 90...150 s.
- Rotation angle: max. 95°; electronic limitation on both sides possible using Belimo Assistant 2.
- Universal, reversible shaft clamp: 12...26.7 mm; manual adjustment with a lockable lever.
- Detachable spring terminals, green status LED and NFC interface for configuration using Belimo Assistant 2.
- Power consumption during operation: 2 W; at rest: 0.2 W; for cable sizing: 5 VA.
- IEC/EN protection rating: IP54; IEC/EN protection class: III, Protective Extra-Low Voltage (PELV).
-
Brand
-
ReferenceGM24SR.15
-
EAN137630498124167
