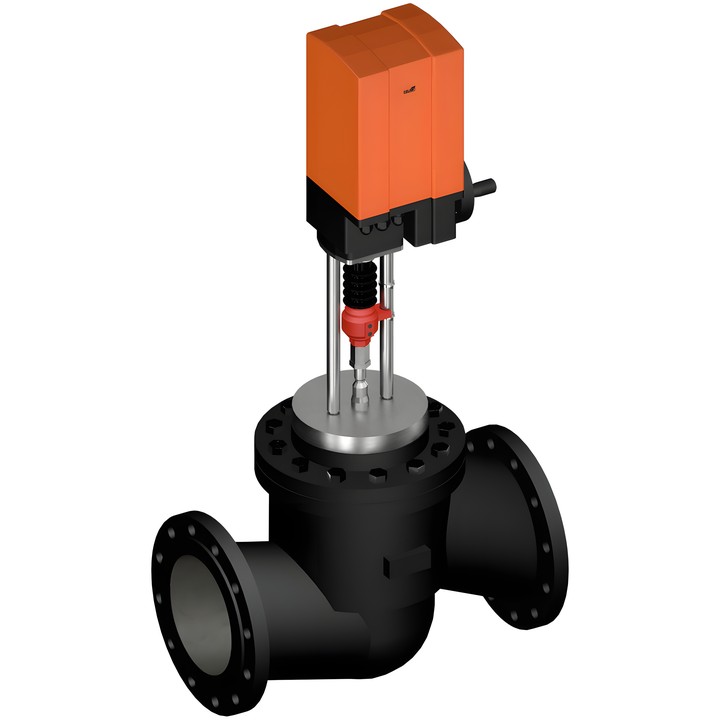

Belimo H6200+GV122303T - two-way globe valve with actuator

Name: Belimo H6200+GV122303T - two-way globe valve with actuator
Brand: Belimo
SKU: H6200+GV122303T
Price: 95722.29 PLN
Availability: OutOfStock

Belimo

zł95,722.29

VAT included

zł77,823.00 tax excluded

Belimo H6200+GV122303T two-way globe valve with actuator and flanged connection. Catalogue data: Kvs 630 m³/h and 1600 kPa.

The valve is designed for closed water systems and water-side control in ventilation and heating systems.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo H6200+GV122303T

Two-way globe valve with actuator and flanged connection. The catalogue description specifies Kvs 630 m³/h and 1600 kPa. The supplied technical data sheet applies to the H6..W..-S7 series; the technical data below refer to valves described in that data sheet and do not confirm all parameters of the complete H6200+GV122303T assembly.

Key valve features according to the H6..W..-S7 series data sheet

Two-way globe valve, flanged, PN 16.
Designed for closed water systems and modulating water-side control in ventilation and heating systems.
Medium: water or water with up to 50% vol. glycol; medium temperature 5...120°C [41...248°F].
Equal-percentage flow characteristic (VDI/VDE 2173), optimised over the opening range; leakage max. 0.05% of Kvs value.
Flanged connection according to ISO 7005-2.
Body: EN-GJL-250 (GG 25), with protective coating; plug, stem and seat made of stainless steel; EPDM stem seal.
Installation from vertical to horizontal in relation to the stem; installation with the stem pointing downwards is not permitted.
The flow direction must match the arrow on the body.

Maximum differential pressure and closing pressure depend on the actuator installed. The series data sheet does not specify the dimensions or weight of the complete H6200+GV122303T assembly.
