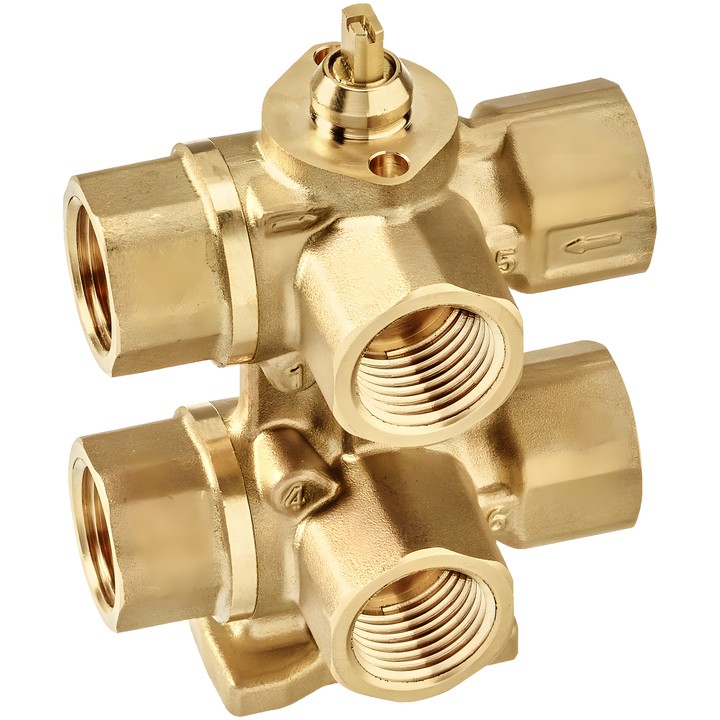

Belimo R3015-P25-P63B1 - 6-way control valve

Name: Belimo R3015-P25-P63B1 - 6-way control valve
Brand: Belimo
SKU: R3015-P25-P63B1
Price: 1050.42 PLN
Availability: OutOfStock

Belimo

zł1,050.42

VAT included

zł854.00 tax excluded

Belimo 6-way control valve with Rp 1/2" female thread, for switching or regulating the water side of heating and cooling elements in closed water systems. DN 15, PN 16; Kvs (Sequence 1) 0.25 m³/h and Kvs (Sequence 2) 0.63 m³/h.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo R3015-P25-P63B1

6-way control valve with two operating sequences, designed for switching or regulating the water side of heating and cooling elements in closed water systems. The valve is positioned by a rotary actuator with a 90° rotation angle.

Key features

DN 15, PN 16; Rp 1/2" female threaded connection.
Kvs (Sequence 1) 0.25 m³/h; Kvs (Sequence 2) 0.63 m³/h.
Medium: water or water with glycol up to max. 50% by volume; medium temperature 6...80°C [43...176°F].
Flow characteristic: linear; bubble-tight, leakage class A (EN 12266-1).
Sequence 1: 0...30° (recommended for cooling); dead zone: 30...60°; Sequence 2: 60...90° (recommended for heating).
The integrated pressure relief function operates when the valve is in the closed position (45°).
Closing pressure ∆ps: 350 kPa; maximum differential pressure ∆pmax: 100 kPa.
Nickel-plated brass body; shut-off element made of chrome-plated brass.
Permitted installation position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.
