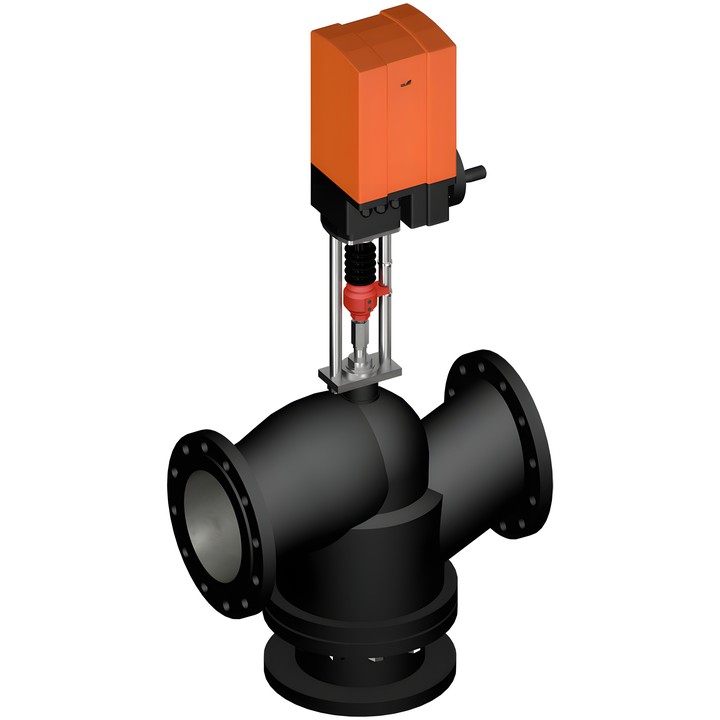

Belimo H7250+GV122303T - 3-way globe valve with actuator

Name: Belimo H7250+GV122303T - 3-way globe valve with actuator
Brand: Belimo
SKU: H7250+GV122303T
Price: 153522.45 PLN
Availability: OutOfStock

Belimo

zł153,522.45

VAT included

zł124,815.00 tax excluded

Belimo 3-way globe valve with actuator and flanged connection. The product description specifies Kvs 1000 m³/h and 1600 kPa. Designed for closed water systems and water-side control in ventilation and heating systems.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo H7250+GV122303T

3-way globe valve with actuator and flanged connection. H7..W..-S7 series documentation describes valves for water-side control in ventilation and heating systems in closed water circuits.

Key confirmed features

Product description: Kvs 1000 m³/h, 1600 kPa, flanged connection.
For type H7250W1000-S7: DN 250, Kvs 1000 m³/h, stroke 65 mm, PN 16 and Sv min. 30.
Medium according to the series documentation: water or water with glycol up to max. 50% vol.; medium temperature -10...120°C [14...248°F]. Stem heating is required at -10...2°C.
Flow characteristic of the control path A – AB and bypass B – AB: linear (VDI/VDE 2173).
Permitted installation: from vertical to horizontal in relation to the stem; installation with the stem pointing downwards is not permitted.
Body: EN-GJL-250 (GG 25) with protective coating; closing element, stem and seat: stainless steel; stem seal: EPDM.

Maximum differential pressure and shut-off pressure depend on the actuator installed. Documentation states that the valve and long-stroke actuator are supplied pre-assembled.
