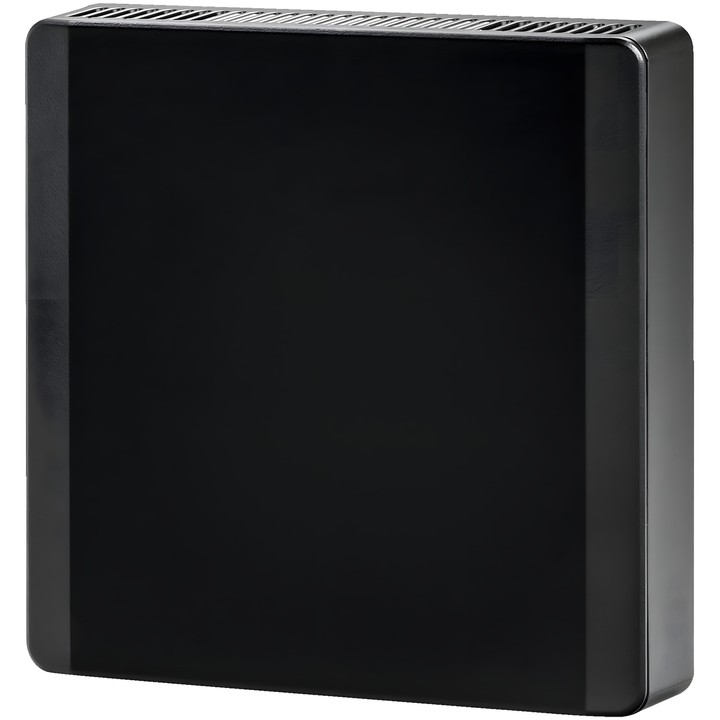

Belimo P-22RTM-1U00A2B - room CO₂, humidity and temperature sensor
Price:
zł1,954.47
VAT included
zł1,589.00 tax excluded
The Belimo P-22RTM-1U00A-2B room sensor measures CO₂, relative humidity, dew point and temperature. It is powered by AC/DC 24 V and supports Modbus RTU, BACnet MS/TP and MP-Bus.
Measured values and setpoints can be read and changed via NFC using the Belimo Display App. The device has 1x digital input for a volt-free contact.
Room CO₂, humidity and temperature sensor
The Belimo P-22RTM-1U00A-2B measures indoor air parameters and controls temperature and ventilation setpoints. It is designed for fixed heating, ventilation and air-conditioning installations. Communication is via Modbus RTU, BACnet MS/TP and MP-Bus.
Key features and specifications
- Measured values: CO₂, relative humidity, dew point and temperature.
- CO₂ measuring range: 0...2000 ppm; dual-channel NDIR technology.
- Temperature measuring range: 0...50°C [32...122°F]; accuracy: ±0.3°C @ 25°C [±0.5°F @ 77°F].
- Humidity measuring range: 0...100% RH; accuracy: ±2% between 0...90% RH @ 25°C.
- Dew point measuring range: -50...50°C [-60...120°F].
- Rated voltage: AC/DC 24 V; power consumption: 1 VA (AC) or 0.5 W (DC).
- Communication: Modbus RTU, BACnet MS/TP, MP-Bus; 1x digital input for a volt-free contact.
- NFC operation with the Belimo Display App and Belimo Assistant 2. Optional access protection with a four-digit code.
- Electrical connection: spring terminal 0.25...1.5 mm²; IEC/EN IP30 protection rating.
- PC housing, black, RAL 9005.
-
Brand
-
ReferenceP-22RTM-1U00A2B
-
EAN137630498145186
