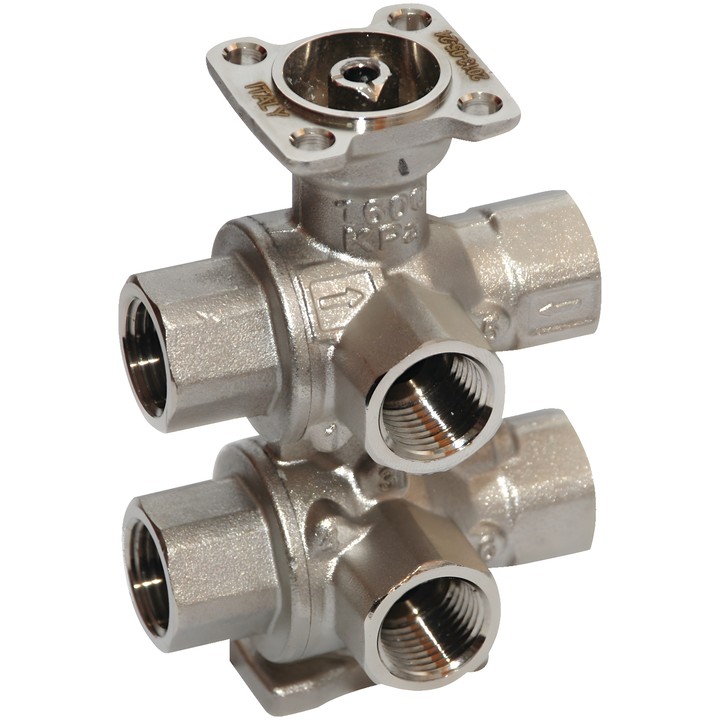

Belimo R3015-1P3-P63B2 - 6-way control valve

Name: Belimo R3015-1P3-P63B2 - 6-way control valve
Brand: Belimo
SKU: R3015-1P3-P63B2
Price: 1141.44 PLN
Availability: OutOfStock

Belimo

zł1,141.44

VAT included

zł928.00 tax excluded

Belimo 6-way control valve for two heating and cooling sequences in closed water systems. DN 15, PN 16, Rp 1/2" female thread; Kvs (Sequence 1) 1.3 m³/h and Kvs (Sequence 2) 0.63 m³/h.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo R3015-1P3-P63B2

6-way control valve for switching or controlling water-side heating and cooling elements in closed water systems. The two sequences are operated by a rotary actuator with a 90° rotation angle.

Key features

DN 15, PN 16; Rp 1/2" female threaded connection in accordance with ISO 7-1.
Kvs (Sequence 1): 1.3 m³/h; Kvs (Sequence 2): 0.63 m³/h.
Medium: water or water with up to 50% vol. glycol; medium temperature: 6...80°C [43...176°F].
Linear flow characteristic; tightness: air-bubble tight, leakage rate A (EN 12266-1).
Built-in function compensates for changes in medium pressure in the closed position (45°), while keeping the two sequences separated.
Sequence 1: 0...30° (recommended for cooling); dead zone: 30...60°; Sequence 2: 60...90° (recommended for heating).
Closing pressure ∆ps: 350 kPa; maximum differential pressure ∆pmax: 100 kPa.
Nickel-plated brass body; installation permitted from vertical to horizontal orientation relative to the stem.
