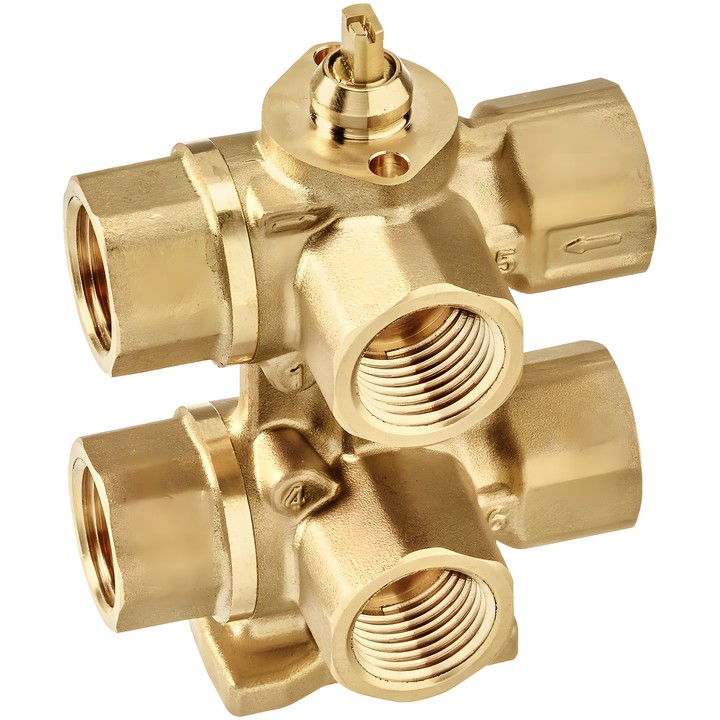

Belimo R3015-P25-P25B1 - 6-way control valve
Price:
zł1,050.42
VAT included
zł854.00 tax excluded
Belimo 6-way control valve for flow control in closed water systems with heating and cooling. DN 15, PN 16, Rp 1/2" female thread; Kvs for Sequence 1 and Sequence 2 is 0.25 m³/h each.
The valve has a linear flow characteristic, a dead zone when switching between sequences, and an integrated pressure compensation function.
Belimo R3015-P25-P25B1 – 6-way control valve
The valve is designed for switching or modulating water-side control of heating and cooling elements in closed water systems. Two sequences are operated by one rotary actuator with a 90° movement range.
Key specifications
- DN 15, PN 16; Rp 1/2" female threaded connection in accordance with ISO 7-1.
- Kvs (Sequence 1): 0.25 m³/h; Kvs (Sequence 2): 0.25 m³/h.
- Medium: water or water with up to max. 50% by volume glycol; medium temperature: 6...80°C [43...176°F].
- Closing pressure ∆ps: 350 kPa; max. differential pressure ∆pmax: 100 kPa.
- Linear flow characteristic; bubble-tight, leakage rate class A (EN 12266-1).
- Sequence 1: 0...30° (recommended for cooling); dead zone: 30...60°; Sequence 2: 60...90° (recommended for heating).
- Integrated function compensates for changes in medium pressure when the valve is closed (45°), while maintaining separation between the sequences.
- Nickel-plated brass body; chrome-plated brass closing element.
Permitted installation: from vertical to horizontal relative to the stem. Installation with the stem pointing downwards is not permitted.
-
Brand
-
ReferenceR3015-P25-P25B1
-
EAN137630498107221
