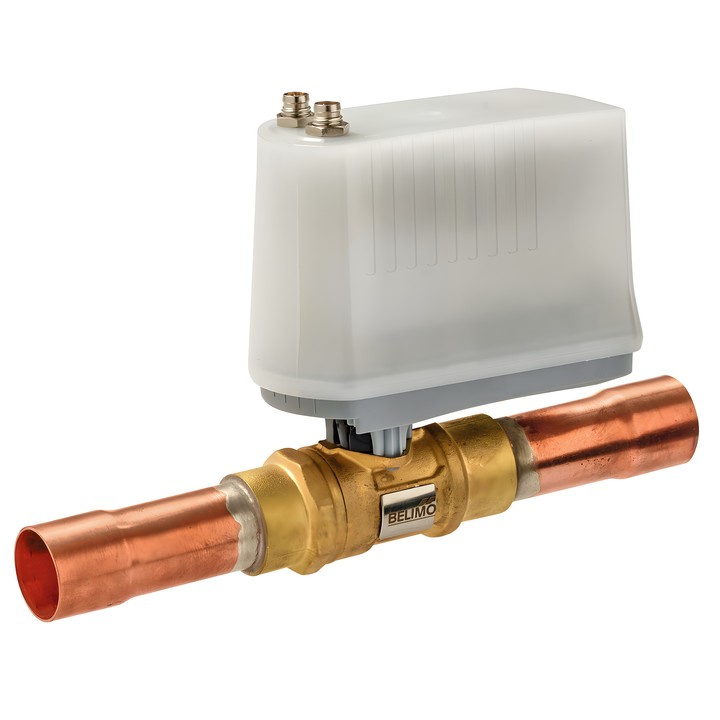

Belimo X8016M.213A3 - two-way expansion valve

Belimo X8016M.213A3 – expansion valve

Hermetically sealed, two-way expansion valve designed to regulate capacity in refrigeration and air-conditioning systems. Documentation indicates suitability for use with CFC, HFC, HFO and R290 refrigerants, as well as refrigerants in safety class A3 (ISO 817). When using flammable refrigerants, product suitability must be checked separately for each application.

Key features and specifications

• Kvs: 4.8 m³/h; connection: ODF 16-16 mm internal soldering sleeve.
• Rated voltage: AC/DC 24 V; operating power consumption: 1.5 W; power consumption for cable sizing: 2.6 VA.
• Control: bipolar stepper motor signals (4 wires) from a superheat controller; MP-Bus communication.
• Configuration via smartphone using the xBALL Syncra app; motor operating time: 15 s / 90°.
• Medium temperature: -20...70°C; with ZCQ-E: 70...120°C. Ambient temperature: -30...50°C.
• Maximum differential pressure ∆pmax: 3500 kPa; PN 50.
• Tightness: air-bubble tight, leakage rate A (EN 12266-1); flow characteristic: equal percentage (VDI/VDE 2173).
• IEC/EN IP54 protection rating; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
• Body: CW617N brass; closing element: AISI 316L stainless steel.
• Installation from vertical to horizontal orientation relative to the spindle; do not install with the spindle pointing downwards. The valve is maintenance-free and allows manual override.
