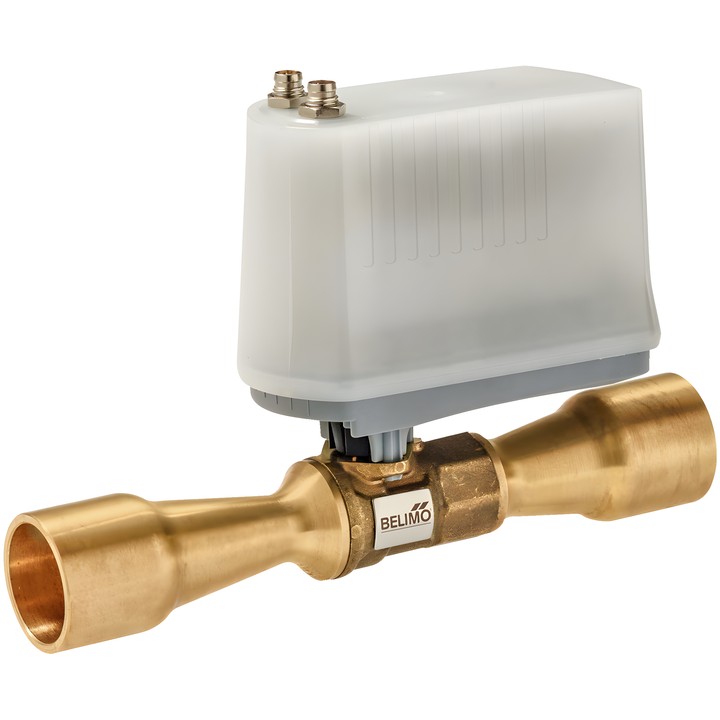

Belimo X8028M.2A3A3 - two-way expansion valve

Name: Belimo X8028M.2A3A3 - two-way expansion valve
Brand: Belimo
SKU: X8028M.2A3A3
Price: 4440.30 PLN
Availability: OutOfStock

Belimo

zł4,440.30

VAT included

zł3,610.00 tax excluded

Belimo X8028M.2A3A3 two-way expansion valve with a Kvs coefficient of 4.8 m³/h and an internal ODF 28-28 mm brazed connection. Designed for refrigeration and air-conditioning systems; suitable for refrigerants in safety class A3 (ISO 817).

AC/DC 24 V supply, controlled by bipolar stepper motor signals (4 wires) from a superheat controller, and configurable via the xBALL Syncra app.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo X8028M.2A3A3 – expansion valve

Two-way expansion valve for refrigeration and air-conditioning systems. The technical data sheet confirms an internal ODF 28-28 mm brazed connection and a Kvs coefficient of 4.8 m³/h.

Key features and specifications

Suitable for CFC, HFC, HFO and R290 refrigerants, and for refrigerants in safety class A3 (ISO 817).
Hermetically sealed, tight-closing valve; tightness: air-bubble tight, leakage rate A (EN 12266-1).
Flow characteristic: equal percentage (VDI/VDE 2173).
Permissible operating pressure ps: 5000 kPa; maximum differential pressure ∆pmax: 3500 kPa.
AC/DC 24 V supply; power consumption during operation 1.5 W; power consumption for cable sizing 2.6 VA.
Control: bipolar stepper motor signals (4 wires) from a superheat controller. Configuration via smartphone with the xBALL Syncra app.
Motor travel time: 15 s / 90°; degree of protection IEC/EN IP54; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F]; medium temperature: -20...70°C [-4...158°F], with ZCQ-E 70...120°C [158...248°F].
Mounting position: from vertical to horizontal relative to the stem; mounting with the stem pointing downwards is not permitted.
Body: Brass CW617N; closing element: Stainless steel AISI 316L. The valve is maintenance-free; manual repositioning with the actuator disconnected.

Use only Belimo Z-C24X3R.. cables for connection; cables are not included in the delivery. When using flammable refrigerants, the user must check that the product is suitable for the specific installation.
