Belimo C615QP-F+BAC - 6-way PI zone valve

Belimo C615QP-F+BAC – PI zone valve

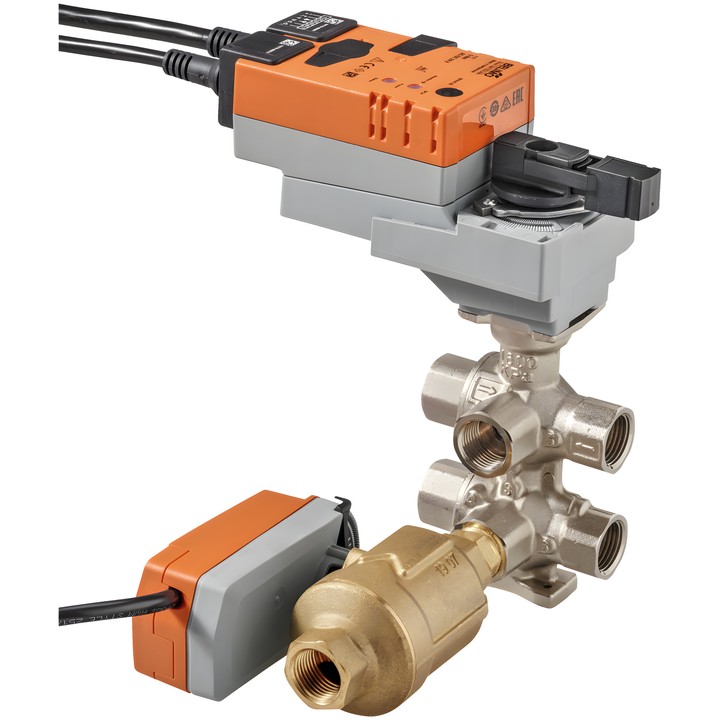

The device consists of a 6-way changeover ball valve with actuator and a 2-way PIQCV zone valve with actuator. It is designed for closed-loop water systems and supports two sequences: cooling and heating. The 6-way valve switches between sequences, while the PIQCV regulates the required flow independently of pressure.

Key data and features

• Connection: DN 15, Rp 1/2" female thread; PN 16.
• Nominal flow V'nom: 980 l/h; setting range V'max: 190...980 l/h.
• Maximum differential pressure ∆pmax: 350 kPa; constant flow at a differential pressure of 16...350 kPa across the PIQCV.
• Medium: water or water with glycol up to max. 50% vol.; medium temperature: 6...80°C [43...176°F].
• Flow characteristic: linear; bubble-tight, leakage class A (EN 12266-1).
• Nominal voltage: AC/DC 24 V; power consumption during operation: 2.1 W, in rest position: 1.9 W; sizing power: 4.6 VA.
• Modulating, communicative or hybrid control; control signal Y: 2...10 V. Communication: BACnet MS/TP, Modbus RTU, MP-Bus.
• Power and control cable: 1 m, 6x 0.75 mm²; IEC/EN protection rating IP40; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
• Body: nickel-plated brass (6-way CCV valve) and brass (PIQCV).
• Maximum flows for both sequences can be set using ZTH EU or Belimo Assistant 2; NFC operation with Belimo Assistant 2.
