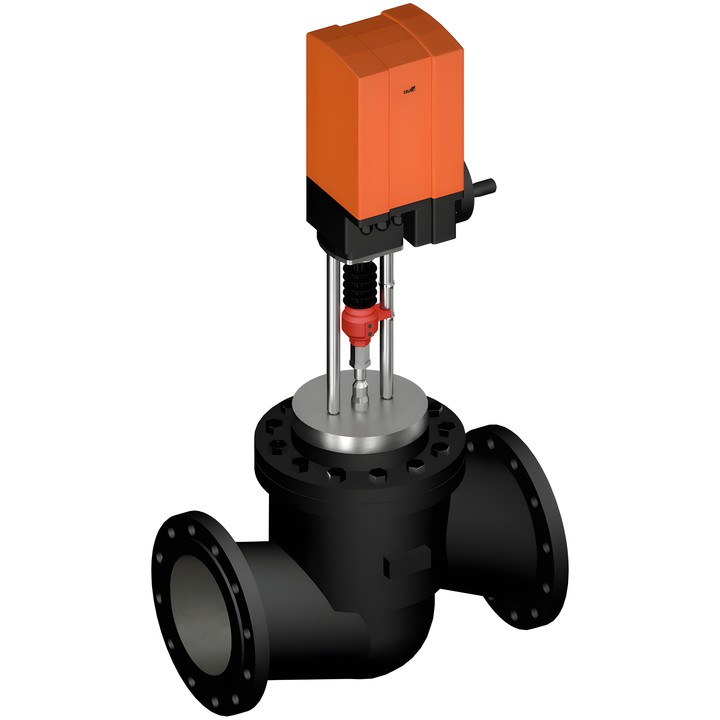

Belimo H6200+GV1224SRT - 2-way globe valve with actuator

Name: Belimo H6200+GV1224SRT - 2-way globe valve with actuator
Brand: Belimo
SKU: H6200+GV1224SRT
Price: 103337.22 PLN
Availability: OutOfStock

Belimo

zł103,337.22

VAT included

zł84,014.00 tax excluded

Belimo H6200+GV1224SRT is a 2-way globe valve with actuator and flanged connection. The product description specifies Kvs 630 m³/h and 1600 kPa.

The valve is designed for closed water systems and for control on the water side of ventilation and heating systems.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo H6200+GV1224SRT

2-way globe valve with actuator for control in closed water systems. The product description specifies a flanged connection, Kvs 630 m³/h and 1600 kPa.

Key features

Control on the water side of ventilation and heating systems.
Flanged connection; the H6..W..-S7 valve family datasheet specifies PN 16 and a flange according to ISO 7005-2.
Medium according to the family datasheet: water or water with up to 50% vol. glycol; medium temperature 5...120°C [41...248°F].
Flow characteristic according to the family datasheet: equal percentage (VDI/VDE 2173), optimised in the opening range.
Permitted mounting position according to the family datasheet: from vertical to horizontal in relation to the stem; installation with the stem pointing downwards is not permitted.
The valve and long-stroke actuator are supplied pre-assembled, according to the family datasheet.

The H6..W..-S7 datasheet describes the valve family; it does not specify separate parameters for the GV1224SRT actuator. Maximum differential pressure and close-off pressure depend on the installed actuator.
