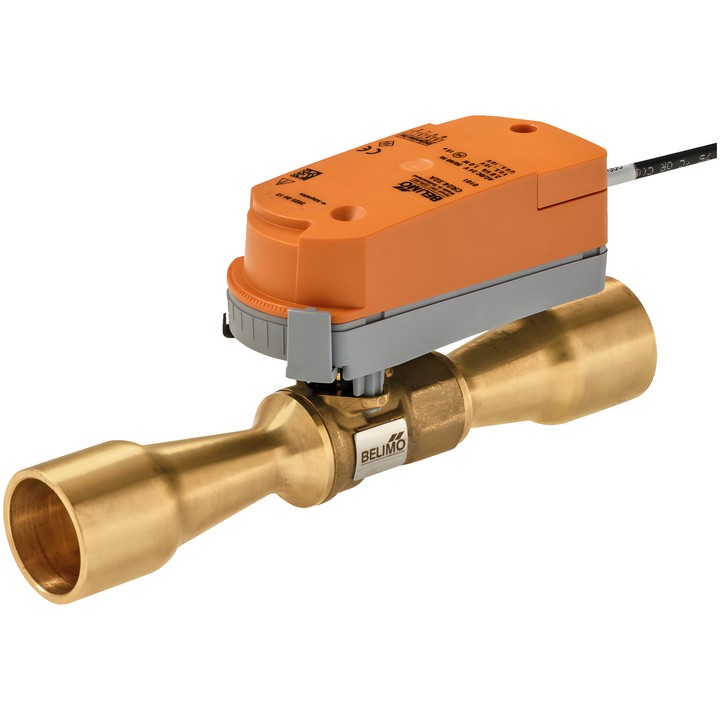

Belimo X8035M.2A32A - two-way control valve for refrigerants
Price:
zł2,389.89
VAT included
zł1,943.00 tax excluded
Two-way control valve with an equal-percentage characteristic for controlling the flow of HFC and HFO refrigerants, suitable for A2L class refrigerants (ISO 817). Kvs 4.8 m³/h, connection with internal ODF 35-35 mm brazing sleeve.
Modulating control, AC/DC 24 V supply and motor running time 15 s / 90°.
Belimo X8035M.2A32A – technical data
Two-way control valve for controlling the flow of HFC and HFO refrigerants. Suitable for A2L class refrigerants (ISO 817).
- Kvs: 4.8 m³/h; connection: internal ODF 35-35 mm brazing sleeve.
- Modulating control; operating range Y: 0.5...10 V; position feedback signal U: 0.5...10 V.
- Supply: AC/DC 24 V; power consumption during operation and in the resting position: 0.3 W; power consumption for wire sizing: 0.6 VA.
- Motor running time: 15 s / 90°; connection: 3 m cable, 4x 0.34 mm².
- Allowable operating pressure ps: 5000 kPa; maximum differential pressure ∆pmax: 3500 kPa.
- Flow characteristic: equal-percentage (VDI/VDE 2173); tightness: air-bubble tight, leakage rate A (EN 12266-1).
- Medium temperature: -20...70°C [-4...158°F]; with ZCQ-E: 70...120°C [158...248°F]. Ambient temperature: -30...60°C [-22...140°F], without radiation.
- Body: Brass CW617N; closing element: Stainless steel AISI 316L.
- IEC/EN IP40 degree of protection; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
- Installation from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Flow is possible in both directions.
-
