Belimo 22ADP-186L air differential pressure sensor with LCD and 8 selectable measuring ranges up to 0...7000 Pa. AC/DC 24 V supply; 0...5 V, 0...10 V or 4...20 mA outputs.

Delivery in approx. 14 days
Share

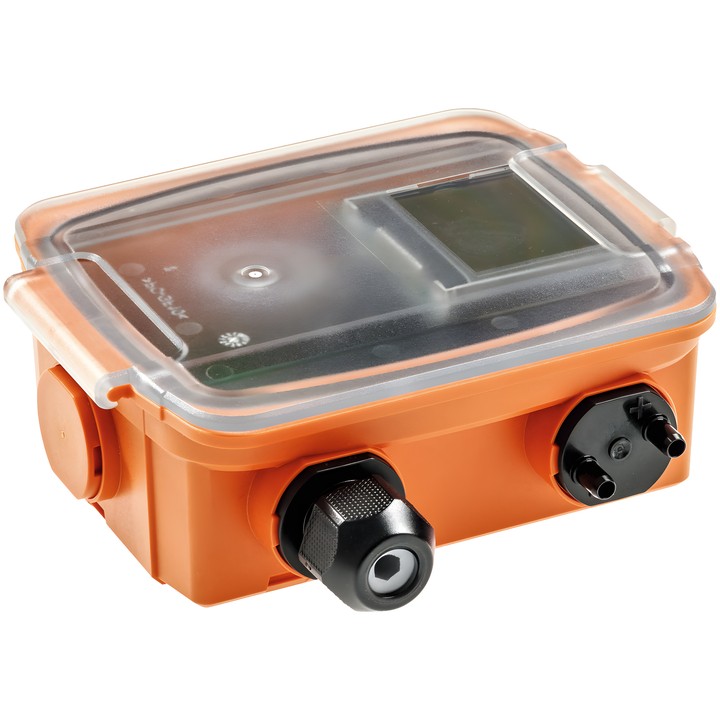

Belimo 22ADP-186L is a differential pressure sensor for air and other non-aggressive gases, designed to monitor differential pressure in stationary HVAC installations. The model is equipped with an LCD.

Key features

  • Measuring range: 0...7000 Pa (0...28 inch WC); 8 selectable measuring ranges.
  • Output signals: 0...5 V, 0...10 V or 4...20 mA. The 0...5/10 V output is selected by a switch.
  • Nominal voltage: AC/DC 24 V.
  • Backlit LCD; readings in Pa or inch WC (configurable).
  • Adjustable typical response time: 0.8 s or 4.0 s.
  • Electrical connection: pluggable spring-clamp terminal strip, max. 2.5 mm².
  • Degree of protection: IP65 / NEMA 4X.
  • Included: mounting plate, plugs, screws and duct connection set with 2 m PVC tube and 2 plastic connectors.

Version 22ADP-186L has an LCD; in the type overview, the manufacturer does not assign it an Auto-Zero function.

  • Brand
    Belimo
  • Reference
    22ADP-186L
  • EAN13
    7630498100956

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    0...5 V 0...10 V 4...20 mA
  • Pressure measuring range
    0...7000 Pa | 0...28 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Display type
    LCD
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Current output power [Range]
    1x 4...20 mA, max. resistance 500 Ω
