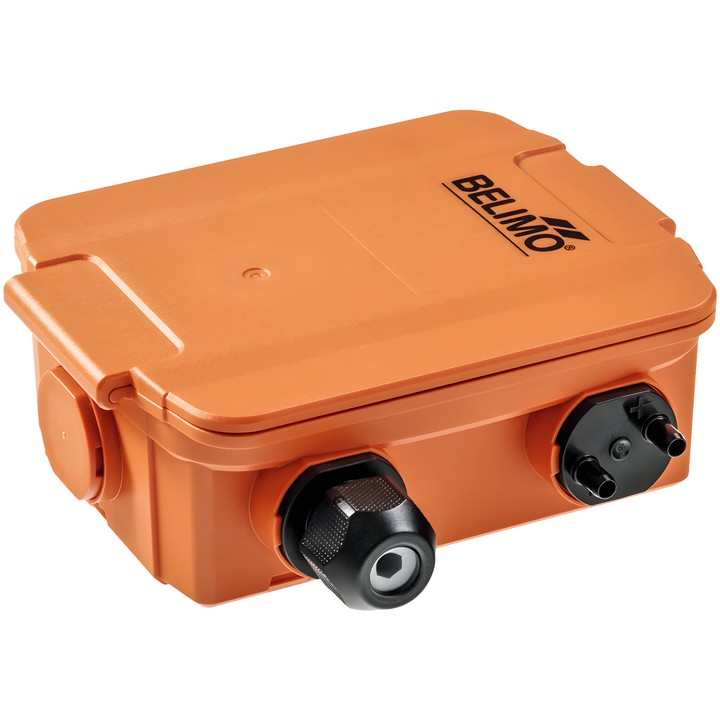

Belimo 22ADP-186A – air differential pressure sensor

Transmitter for monitoring the differential pressure of air and other non-flammable, non-aggressive gases. Model 22ADP-186A features the Auto-Zero function. It can be used in stationary HVAC installations, including for monitoring air filters and fans.

Key features

  • Measuring range: 0...7000 Pa (0...28 inch WC); 8 selectable measuring ranges.
  • Rated voltage: AC/DC 24 V.
  • Voltage output: 1 x 0...5 V, 0...10 V, min. resistance 10 kΩ; select 0...5/10 V using the switch.
  • Current output: 1x 4...20 mA, max. resistance 500 Ω.
  • Automatic Auto-Zero function.
  • Adjustable typical response time: 0.8 s or 4.0 s.
  • Degree of protection: IP65 / NEMA 4X.
  • Electrical connection: pluggable spring terminal block, max. 2.5 mm².

Included: mounting plate, duct connection set with 2 m PVC tube and 2 plastic connectors, plus plugs and screws.

  • Brand
    Belimo
  • Reference
    22ADP-186A
  • EAN13
    7630498117817

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    0...5 V 0...10 V 4...20 mA
  • Pressure measuring range
    0...7000 Pa | 0...28 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Current output power [Range]
    1x 4...20 mA, max. resistance 500 Ω

Techniczna karta katalogowa

Download (3.55MB)

Instrukcja montażu

Download (993.72KB)

Techniczna karta katalogowa – 22ADP-186..

Download (3.56MB)

EU Declaration of Conformity – 22ADP-186A

Download (40.38KB)

Environmental Declaration – 22ADP..

Download (72.08KB)
