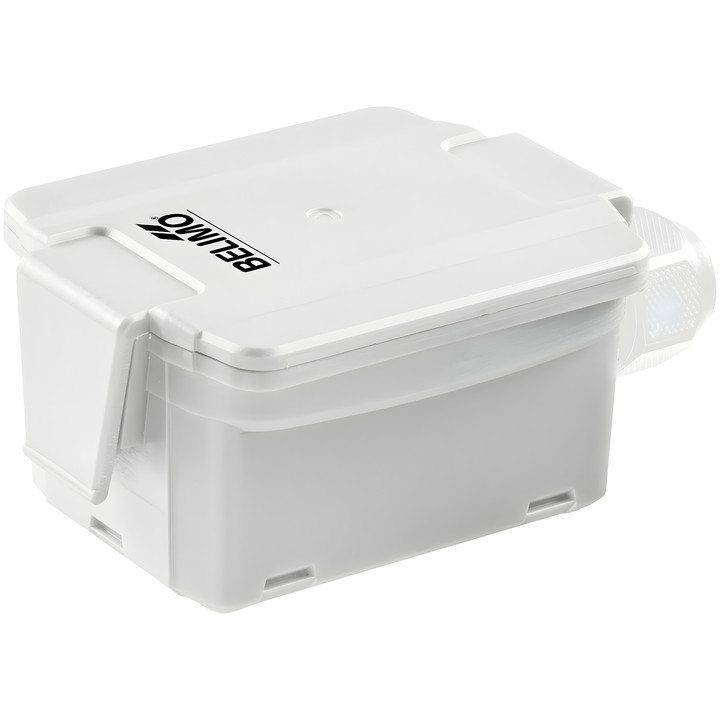

Belimo 01UT-1A - external passive Pt100 temperature sensor

Name: Belimo 01UT-1A - external passive Pt100 temperature sensor
Brand: Belimo
SKU: 01UT-1A
Price: 100.37 PLN
Availability: BackOrder

Belimo

zł100.37

VAT included

zł81.60 tax excluded

Belimo 01UT-1A external passive air temperature sensor with an internal sensing element and Pt100 output signal. Measuring range: -35...50°C [-30...120°F].

Enclosure protection rating IP65 / NEMA 4X. Electrical connection via a pluggable terminal block with spring terminals, max. 2.5 mm².

Delivery in approx. 14 days

Belimo 01UT-1A – external temperature sensor

Model 01UT-1A is a passive sensor for measuring outdoor air temperature. It has an internal sensing element and a Pt100 output. The documentation lists cold stores, greenhouses, production facilities and warehouses as typical applications.

Key features

Passive temperature sensor output signal: Pt100.
Measuring range: -35...50°C [-30...120°F].
Accuracy for Pt..: Class B, ±0.3°C @ 0°C [±0.5°F @ 32°F].
Pt100 measuring current: <1 mA @ 0°C [32°F].
Typical time constant τ (63%) indoors: 854 s.
Protection rating: IP65 / NEMA 4X.
Electrical connection: pluggable terminal block with spring terminals, max. 2.5 mm²; cable gland with strain relief for cable ø6...8 mm.
Ambient temperature range: -35...50°C [-30...120°F].

The set includes mounting plate S housing A-22D-A09, dowels and screws. For long connection cables, account for cable resistance, which may cause a shift in the measurement result.
