Dual air differential pressure sensor with two independent measuring systems and two additional inputs. Measuring range -100...2500 Pa; each system has 8 selectable ranges.

AC/DC 24 V supply, Modbus RTU communication, two 0...5 V or 0...10 V analogue outputs and an LCD. Enclosure protection rating IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

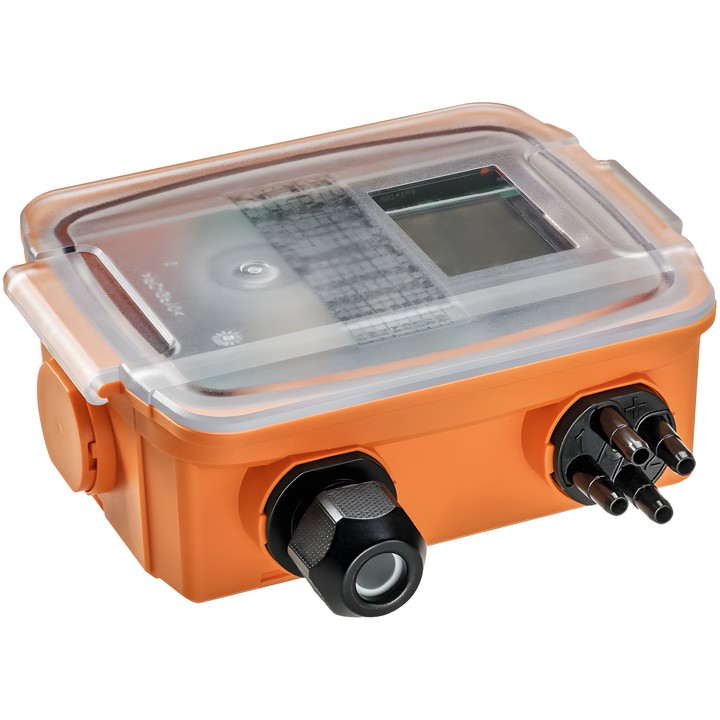

Belimo 22ADP-154K – air differential pressure sensor

This transmitter, with two independent measuring systems, is designed to monitor positive pressure, negative pressure or differential pressure in air and other non-flammable, non-aggressive gases. The documentation specifies use in fixed HVAC installations, including monitoring air filters and fan V-belts.

Key features

  • Pressure measuring range: -100...2500 Pa; 8 selectable ranges for each measuring system.
  • Measured values: differential pressure and volumetric flow.
  • Communication: Modbus RTU. Outputs AOU1 and AOU2 are assigned to differential pressure by default; they can be switched to volumetric flow via the bus.
  • Voltage output: 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ; 0...5/10 V signal selectable by switch.
  • Two additional inputs IN1 and IN2 for connecting a potential-free contact or NTC10k resistance sensor; their values can be read via Modbus.
  • Nominal voltage: AC/DC 24 V. Electrical connection: pluggable spring-clamp terminal block, max. 2.5 mm².
  • 29x35 mm backlit LCD; protection rating IP65 / NEMA 4X.
  • Included: mounting plate, mounting hardware, 4 plastic duct connections and 2x 2 m PVC tubes.

  • Brand
    Belimo
  • Reference
    22ADP-154K
  • EAN13
    7630498100833

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure Volume flow
  • Output signal
    Modbus 0...5 V 0...10 V
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Display type
    LCD
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU

Techniczna karta katalogowa

Download (3.88MB)

Instrukcja montażu

Download (1.56MB)

Techniczna karta katalogowa – 22ADP-154K

Download (3.89MB)

EU Declaration of Conformity – 22ADP-154K

Download (38.67KB)

Environmental Declaration – 22ADP..

Download (72.08KB)
