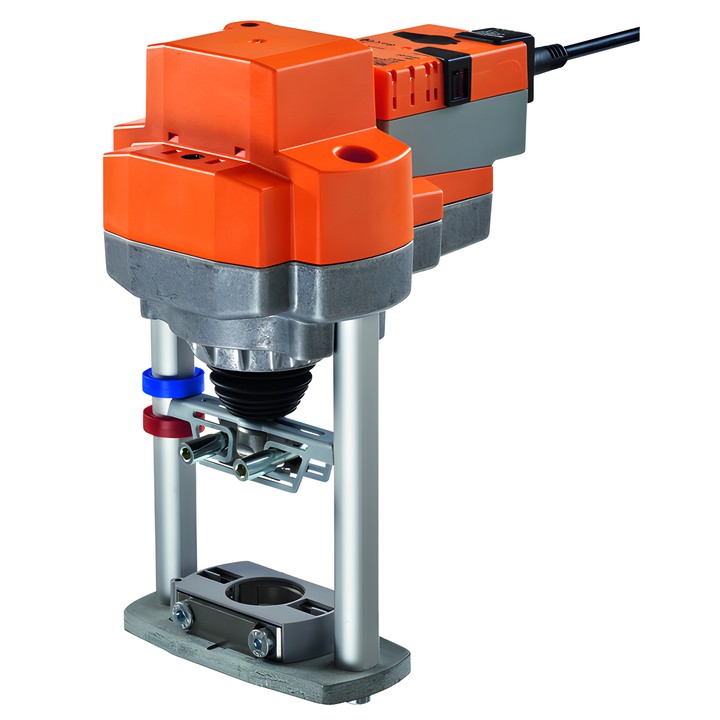

Belimo EVC24A-SZ - linear actuator for globe valves

Belimo EVC24A-SZ

Modulating linear actuator for 2-way and 3-way globe valves. Designed for stationary heating, ventilation and air-conditioning installations.

Key features and specifications

• Thrust: 2500 N; stroke: 40 mm.
• Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
• Control signal Y operating range: 0.5...10 V; position feedback signal U: 0.5...10 V.
• Motor running time: 35 s / 40 mm.
• Power consumption during movement: 11 W; in rest position: 1.5 W; power for cable sizing: 18 VA.
• Power and control connection: 1 m cable, 4x 0.75 mm².
• Manual override using a push-button; manual or automatic adaptation when power is first applied.
• Mechanical position indicator for a stroke of 5...40 mm.
• IEC/EN protection rating: IP54; NEMA/UL protection rating: NEMA 2.
