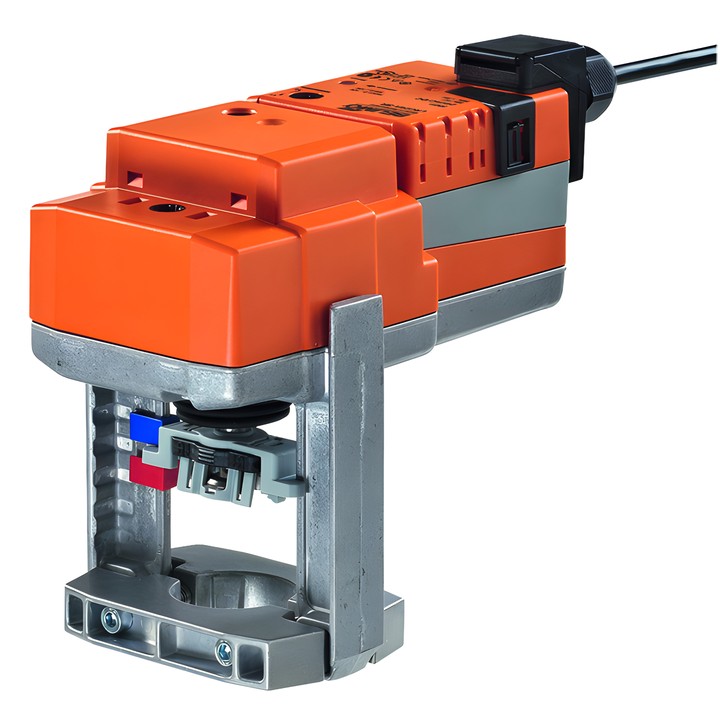

Belimo LV24A-SZ-TPC - linear actuator for globe valves

Belimo LV24A-SZ-TPC

Modulating linear actuator designed for 2-way and 3-way globe valves. The control signal Y determines the actuator position, while the feedback signal U enables electrical readback of its position.

Key features and specifications

• Actuating force: 500 N; stroke: 15 mm; travel time: 150 s / 15 mm.
• Supply: AC/DC 24 V; voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V; frequency: 50/60 Hz.
• Control range Y: 0.5...10 V; position feedback signal U: 0.5...10 V, max. 0.5 mA.
• Power consumption while moving: 1 W; at rest: 0.5 W; power for cable sizing: 2 VA.
• Power and control connection: terminals with a 1 m cable, 4x 0.75 mm²; terminal 4 mm².
• Manual adjustment by push-button, with locking option, and mechanical position indicator.
• Adaptation can be initiated manually and is performed automatically when the power is first switched on.
• Overload protection and automatic stop when the end position is reached.
• Protection rating: IP54; ambient temperature: 0...50°C.
